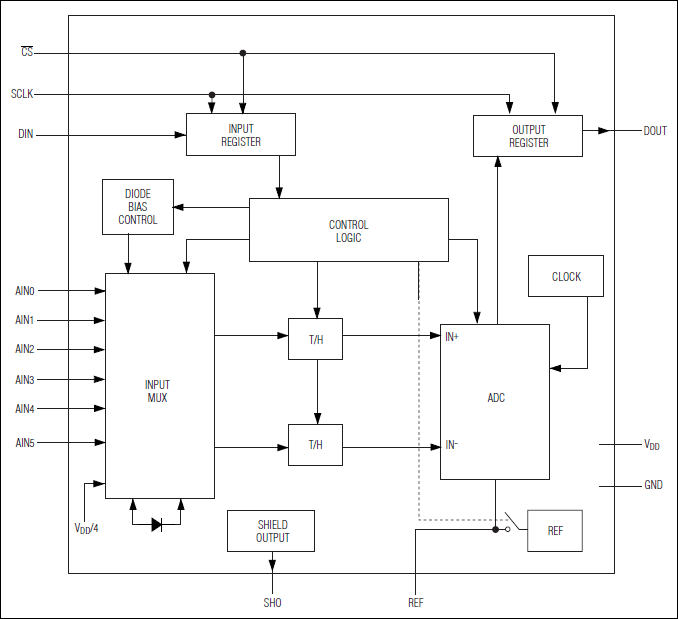

MAX1098A|MAX1098B|MAX1098C - 典型电路框图:
MAX1098A|MAX1098B|MAX1098C典型电路框图
承诺原装正品
专营Maxim美信,真正优化您的供应链
Maxim产品 - MAX1098A|MAX1098B|MAX1098C介绍
MAX1098A|MAX1098B|MAX1098C - 10位串行输出温度传感器,带有5通道ADC

MAX1098A|MAX1098B|MAX1098C是Maxim美信半导体公司的一款美信芯片产品,MAX1098A|MAX1098B|MAX1098C是10位串行输出温度传感器,带有5通道ADC,本站介绍了MAX1098A|MAX1098B|MAX1098C的封装应用图解、特点和优点、功能等,并给出了与MAX1098A|MAX1098B|MAX1098C相关的Maxim元器件型号供参考。

MAX1098A|MAX1098B|MAX1098C - 10位串行输出温度传感器,带有5通道ADC - 美信芯片 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX1098/MAX1099 implement both local andremote temperature sensing with 10-bit resolution, using+5V and +3V supply voltages, respectively. Accuracyis ±1°C from 0°C to +70°C, with no calibration needed.The devices feature an algorithmic switched-capacitoranalog-to-digital converter (ADC), on-chip clock, and3-wire serial interface compatible with SPI, QSPI?, andMICROWIRE?.

The MAX1098/MAX1099 also perform fully differentialvoltage measurements with 10-bit resolution and separatetrack-and-hold (T/N) for positive and negative inputs. Bothdevices accept versatile input modes consisting of two3-channel signal pairs, five 1-channel signals relative toAIN5, or VDD/4 relative to ground. An external referencemay be used for more accurate voltage measurements.

Typical power consumption is only 1.3mW (MAX1099). Ashutdown mode and two standby modes provide multiplestrategies for prolonging battery life in portable applicationsthat require limited sampling throughput.

The MAX1098/MAX1099 are available in 16-pin SSOPpackages.

关键特性
  • 以下关键特性由Maxim美信半导体提供:
  • Local and Remote Temperature Sensing
  • 12-Bit Resolution for Temperature and 10-Bit Resolution for Voltage Inputs
  • ±1°C Accuracy from -40°C to +85°C
  • Fully Differential Inputs
  • Single-Supply Operation
  • +4.75V to +5.25V (MAX1098)
  • +2.7V to +3.6V (MAX1099)
  • 3-Wire SPI/QSPI/MICROWIRE-Compatible Interface
  • Internal Precision Voltage Reference
  • 2.50V (MAX1098)
  • 1.20V (MAX1099)
  • Space-Saving 16-Pin SSOP Package
  • 热门应用
  • 通信系统
  • 手持式仪表(PDA、掌上电脑)
  • 工业过程控制
  • 医疗装置
