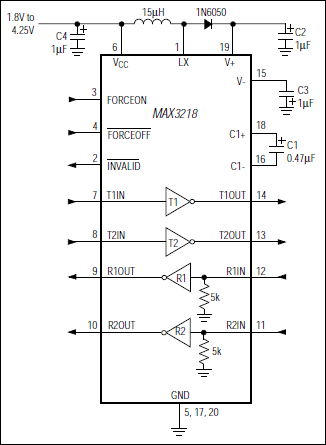

MAX3218 - 典型电路框图:
MAX3218典型电路框图
承诺原装正品
专营Maxim美信,真正优化您的供应链
Maxim产品 - MAX3218介绍
MAX3218 - 1µA、1.8V至4.25V、RS-232收发器,带有AutoShutdown

MAX3218是Maxim美信半导体公司的一款驱动器-接收器产品,MAX3218是1µA、1.8V至4.25V、RS-232收发器,带有AutoShutdown,本站介绍了MAX3218的封装应用图解、特点和优点、功能等,并给出了与MAX3218相关的Maxim元器件型号供参考。

MAX3218 - 1µA、1.8V至4.25V、RS-232收发器,带有AutoShutdown - 驱动器-接收器 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX3218 RS-232 transceiver is intended for battery-powered EIA/TIA-232E and V.28/V.24 communications interfaces that need two drivers and two receivers with minimum power consumption from a single low-voltage supply. It provides a wide +1.8V to +4.25V operating voltage range while maintaining true RS-232 and EIA/TIA-562 voltage levels. The MAX3218 runs from two alkaline, NiCd, or NiMH cells without any form of voltage regulator. A guaranteed 120kbps data rate provides compatibility with popular software for communicating with personal computers.

Supply current is reduced to 1µA with Maxim's new AutoShutdown feature. When the MAX3218 does not sense a valid signal level on the receiver inputs, the on-board power-supply and drivers shut down. This occurs if the RS-232 cable is disconnected or if the transmitters of the connected peripheral are turned off. The system turns on again when a valid level is applied to either RS-232 receiver input. As a result, the system saves power without changes to the existing software. Additionally, the MAX3218 can be forced into or out of shutdown, under logic control.

While shut down, all receivers can remain active or can be disabled under logic control, permitting a system incorporating the CMOS MAX3218 to monitor external devices while in low-power shutdown. Three-state drivers are provided on both receiver outputs so that multiple receivers, generally of different interface standards, can be on the same bus. The MAX3218 is available in 20-pin DIP and SSOP packages.

关键特性
  • 以下关键特性由Maxim美信半导体提供:BETTER THAN BIPOLAR!
  • 1µA Supply Current Using AutoShutdown
  • Operates Directly from Two Alkaline, NiCd or NiMH Cells
  • +1.8V to +4.25V Single-Supply Voltage Range
  • 120kbps Data Rate Guaranteed
  • Low-Cost Surface-Mount Components
  • Meets EIA/TIA-232E Specifications
  • Three-State Receiver Outputs
  • Flow-Through Pinout
  • On-Board DC-DC Converters
  • 20-Pin SSOP and DIP Packages
  • 热门应用
  • 电池供电应用
  • 蜂窝电话
  • 手持式装置
  • PDA
  • 外设
  • 亚笔记本电脑
