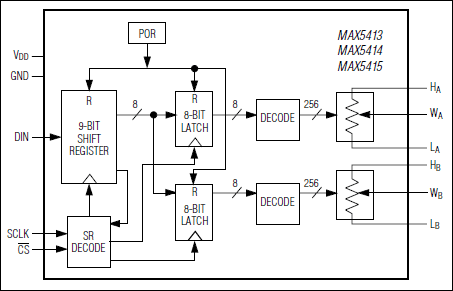

MAX5413-典型电路框图
MAX5413典型电路框图
Maxim(美信半导体)公司授权一级代理商
具备充足的Maxim芯片库存
中国销售额排名前十的Maxim代理商
提供Maxim公司产品的产品概述、关键特性、热门应用讲解及图例
MAX5413 - 双路、256抽头、低漂移、数字电位器,14引脚TSSOP封装

MAX5413是Maxim(美信半导体)旗下的一款光电产品产品,MAX5413是双路、256抽头、低漂移、数字电位器,14引脚TSSOP封装,并且具备Maxim美信半导体高性能芯片品质,本站介绍了MAX5413的产品概述、关键特性、热门应用等,,并给出了与MAX5413相关的Maxim元器件型号供参考.

MAX5413 - 双路、256抽头、低漂移、数字电位器,14引脚TSSOP封装 - Maxim美信半导体高性能芯片品质 - Maxim(美信半导体)

产品概述

The MAX5413/MAX5414/MAX5415 is a family of dual linear taper digital potentiometers. Each device has two 3-terminal potentiometers. The MAX5413/MAX5414/MAX5415 operate from +2.7V to +5.5V single-supply voltages and use an ultra-low 0.1µA supply current. These devices also provide glitchless switching between resistor taps, as well as a convenient power-on reset (POR) that sets the wiper to the midscale position at power-up. Each potentiometer consists of a fixed resistor with a wiper contact that is digitally controlled through a 3-wire serial interface and has 256 tap points. It performs the same function as a discrete potentiometer or variable resistor.

These parts are ideal for applications requiring digitally controlled resistors. Three resistance values are available: 10kΩ (MAX5413), 50kΩ (MAX5414), and 100kΩ (MAX5415). A nominal resistor temperature coefficient of 35ppm/°C end-to-end and 5ppm/°C ratiometric make the MAX5413/MAX5414/MAX5415 ideal for applications requiring low temperature-coefficient variable resistors, such as adjustable-gain circuit configurations.

The MAX5413/MAX5414/MAX5415 are available in a 14-pin TSSOP package. Each device is guaranteed over the extended industrial temperature range (-40°C to +85°C).

关键特性
  • 以下关键特性由Maxim美信半导体提供:
  • 14-Pin TSSOP Small-Footprint Package
  • 256 Tap Positions
  • Ultra-Low 0.1µA Supply Current
  • +2.7V to +5.5V Single-Supply Operation
  • Two Independent Potentiometers in a Package
  • Low End-to-End Temperature Coefficient 35ppm/°C
  • Low Ratiometric Temperature Coefficient5ppm/°C
  • Power-On Reset: Wiper Goes to Midscale (Position 128)
  • Glitchless Switching Between Resistor Taps
  • 3-Wire SPI™-Interface Compatible
  • 10kΩ/50kΩ/100kΩ Resistor Values
  • 热门应用
  • 可调节电压基准
  • 阻抗匹配
  • LCD屏调节
  • 低偏差可编程增益放大器
  • 替代机械电位器
  • 可编程滤波器、延时、时间常数
  • 音量控制
