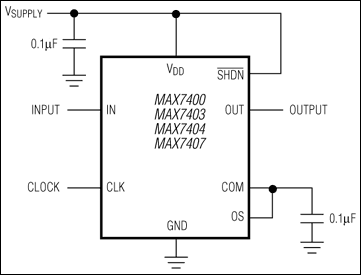

MAX7404 - 典型电路框图:
MAX7404典型电路框图
承诺原装正品
专营Maxim美信,真正优化您的供应链
Maxim产品 - MAX7404介绍
MAX7404 - 八阶、低通、椭圆函数、开关电容滤波器

MAX7404是Maxim美信半导体公司的一款滤波器(连续模式和开关电容)产品,MAX7404是八阶、低通、椭圆函数、开关电容滤波器,本站介绍了MAX7404的封装应用图解、特点和优点、功能等,并给出了与MAX7404相关的Maxim元器件型号供参考。

MAX7404 - 八阶、低通、椭圆函数、开关电容滤波器 - 滤波器(连续模式和开关电容) - 尺寸最小的低功耗、8阶椭圆滤波器 - 美信半导体

产品概述

The MAX7400/MAX7403/MAX7404/MAX7407 8th-order, lowpass, elliptic, switched-capacitor filters (SCFs) operate from a single +5V (MAX7400/MAX7403) or +3V (MAX7404/MAX7407) supply. These devices draw 2mA of supply current and allow corner frequencies from 1Hz to 10kHz, making them ideal for low-power anti-aliasing and post-DAC filtering applications. They feature a shutdown mode that reduces the supply current to 0.2µA.

Two clocking options are available: self-clocking (through the use of an external capacitor) or external clocking for tighter cutoff-frequency control. In addition, an offset adjustment pin (OS) allows for the adjustment of the DC output level.

The MAX7400/MAX7404 provide 82dB of stopband rejection and a sharp rolloff with a transition ratio of 1.5. The MAX7403/MAX7407 provide a sharper rolloff with a transition ratio of 1.2, while still delivering 60dB of stopband rejection. The fixed response of these devices simplifies the design task to corner-frequency selection by setting a clock frequency. The MAX7400/MAX7403/MAX7404/MAX7407 are available in 8-pin SO and DIP packages.

关键特性
  • 以下关键特性由Maxim美信半导体提供:
  • 8th-Order Lowpass Elliptic Filter
  • Low Noise and Distortion -82dB THD + Noise (MAX7400)
  • Clock-Tunable Corner Frequency (1Hz to 10kHz)
  • 100:1 Clock-to-Corner Ratio
  • Single-Supply Operation
  • +5V (MAX7400/MAX7403)
  • +3V (MAX7404/MAX7407)
  • Low Power
  • 2mA (Operating Mode)
  • 0.2µA (Shutdown Mode)
  • Available in 8-Pin SO and DIP Packages
  • Low Output Offset: ±5mV
  • 热门应用
  • ADC抗混叠
  • 气囊电子装置
  • CT2基站
  • DAC后置滤波
  • 语音处理
