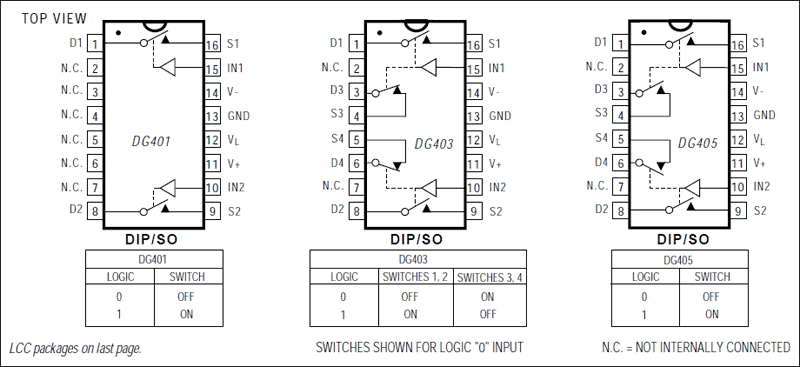

DG403 - 典型电路框图:
DG403典型电路框图
承诺原装正品
专营Maxim美信,真正优化您的供应链
Maxim产品 - DG403介绍
DG403 - 改进的双路、高速模拟开关

DG403是Maxim美信半导体公司的一款保护器产品,DG403是改进的双路、高速模拟开关,本站介绍了DG403的封装应用图解、特点和优点、功能等,并给出了与DG403相关的Maxim元器件型号供参考。

DG403 - 改进的双路、高速模拟开关 - 保护器 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

Maxim's redesigned DG401/DG403/DG405 analog switches now feature guaranteed low on-resistance matching between switches (2Ω max) and guaranteed on-resistance flatness over the signal range (3Ω max). These low on-resistance switches (20Ω typ) conduct equally well in either direction and are guaranteed to have low charge injection (15pC max). The new design offers lower off leakage current over temperature (less than 5nA at +85°C).

The DG401/DG403/DG405 are dual, high-speed switches. The single-pole/single-throw DG401 and double-pole/single-throw DG405 are normally open dual switches. The dual, single-pole/double-throw DG403 has two normally open and two normally closed switches. Switching times are 150ns max for tON and 100ns max for tOFF, with a maximum power consumption of 35µW. These devices operate from a single +10V to +30V supply, or bipolar supplies of ±4.5V to ±20V. Maxim's improved DG401/DG403/DG405 are fabricated with a 44V silicon-gate process.

关键特性
  • 以下关键特性由Maxim美信半导体提供:New Features
  • Plug-In Upgrade for Industry-Standard DG401/DG403/DG405
  • Improved rDS(ON) Match Between Channels (2Ω max)
  • Guaranteed rFLAT(ON) Over Signal Range (3Ω max)
  • Improved Charge Injection (15pC max)
  • Improved Off Leakage Current Over Temperature (<5nA at +85°C)
    Existing Features
  • Low rDS(ON) (30Ω max)
  • Single-Supply Operation +10V to +30V
  • Bipolar-Supply Operation ±4.5V to ±20V
  • Low Power Consumption (35µW max)
  • Rail-to-Rail Signal Handling Capability
  • TTL/CMOS-Logic Compatible
  • 热门应用
  • 音频信号切换
  • 电池供电应用
  • 通信系统
  • 引导与控制系统
  • 平面显示器
  • 军用无线装置
  • PBX、PABX
  • 采样保持电路
  • 测试设备
