DS1210是Maxim美信半导体公司的一款存储器产品，DS1210是非易失控制器芯片，本站介绍了DS1210的封装应用图解、特点和优点、功能等，并给出了与DS1210相关的Maxim元器件型号供参考。
DS1210 - 非易失控制器芯片 - 存储器 - Maxim美信半导体高性能芯片品质 - 美信半导体

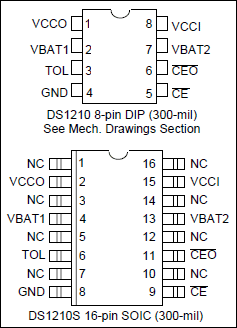

The DS1210 Nonvolatile Controller Chip is a CMOS circuit which solves the application problem of converting CMOS RAM into nonvolatile memory. Incoming power is monitored for an out-of-tolerance condition. When such a condition is detected, chip enable is inhibited to accomplish write protection and the battery is switched on to supply the RAM with uninterrupted power. Special circuitry uses a low-leakage CMOS process which affords precise voltage detection at extremely low battery consumption. The 8-pin DIP package keeps PC board real estate requirements to a minimum. By combining the DS1210 Nonvolatile Controller Chip with a CMOS memory and batteries, nonvolatile RAM operation can be achieved.
