DS9100A是Maxim美信半导体公司的一款iButton器件产品，DS9100A是iButton读取头冲压件，本站介绍了DS9100A的封装应用图解、特点和优点、功能等，并给出了与DS9100A相关的Maxim元器件型号供参考。
DS9100A - iButton读取头冲压件 - iButton器件 - Maxim美信半导体高性能芯片品质 - 美信半导体

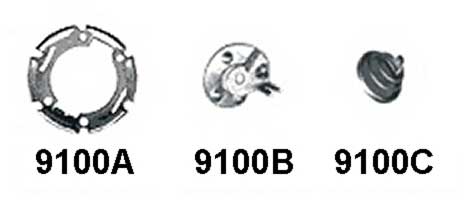

The DS9100 touch and hold probe stampings' function is similar to the DS9098 iButton® retainer. An F5 MicroCan™ will fit completely into the DS9098, but the flange and about one-third of the can will extend out if pressed into the DS9100. As a probe, the DS9100A together with the coiled spring DS9100C allows reading iButtons on contact. With additional pressure, the stiff springs of the DS9100A's outer ring will deflect and grip the MicroCan sufficiently to provide a continuous contact to both the can rim (ground) and the can lid (data). If reading on contact is not required, the cantilever-type center contact DS9100B can be used rather than the DS9100C.
