ICL7621 - 单/双/四路运算放大器

ICL7621是Maxim美信半导体公司的一款放大器产品，ICL7621是单/双/四路运算放大器，本站介绍了ICL7621的封装应用图解、特点和优点、功能等，并给出了与ICL7621相关的Maxim元器件型号供参考。

ICL7621 - 单/双/四路运算放大器 - 放大器 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The ICL761X–ICL764X family of monolithic CMOS op amps combine ultra-low input current with low-power operation over a wide supply voltage range. With pinselectable quiescent currents of 10µA, 100µA, or 1000µA per amplifier, these op amps will operate from ±1V to ±8V power supplies, or from single supplies from 2V to 16V. The CMOS outputs swing to within millivolts of the supply voltages.

The ultra-low bias current of 1pA makes this family of op amps ideal for long time constant integrators, picoammeters, low droop rate sample/hold amplifiers and other applications where input bias and offset currents are critical. A low noise current of 0.01pA and an input impedance of 1012Ω ensure optimum performance with very high source impedances in such applications as pH meters and photodiode amplifiers.

关键特性

以下关键特性由Maxim美信半导体提供：

Pin-for-Pin Second Source

1pA Typical Bias Current—4nA (max) at +125°C

±1V to ±8V Wide Supply Voltage Range

Industry-Standard Pinouts

Programmable Quiescent Currents of 10µA, 100µA, and 1000µA

Monolithic, Low-Power CMOS Design

热门应用

电池供电仪表

助听器与麦克风放大器

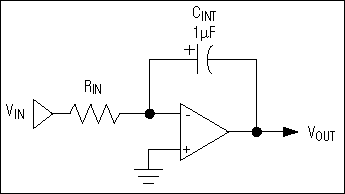

具有较长时间常数的积分器

低失效率采样/保持放大器

低频有源滤波器

低泄漏放大器

皮安级安培计
