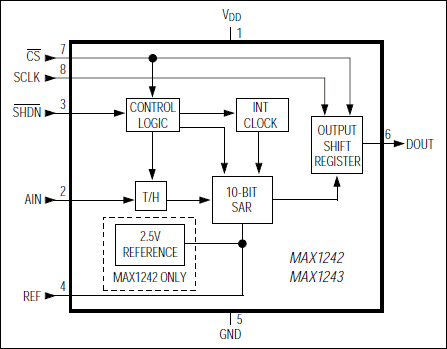

MAX1243 - 典型电路框图：
MAX1243典型电路框图
Maxim美信半导体芯片：
承诺原装正品
专营Maxim美信，真正优化您的供应链
Maxim产品 - MAX1243介绍

MAX1243 - +2.7V至+5.25V、低功耗、10位串行ADC，SO-8封装

MAX1243是Maxim美信半导体公司的一款数据转换器和采样-保持电路产品，MAX1243是+2.7V至+5.25V、低功耗、10位串行ADC，SO-8封装，本站介绍了MAX1243的封装应用图解、特点和优点、功能等，并给出了与MAX1243相关的Maxim元器件型号供参考。

MAX1243 - +2.7V至+5.25V、低功耗、10位串行ADC，SO-8封装 - 数据转换器和采样-保持电路 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX1242/MAX1243 are low-power, 10-bit analog-to-digital converters (ADCs) available in 8-pin packages. They operate with a single +2.7V to +5.25V supply and feature a 7.5µs successive-approximation ADC, a fast track/hold (1.5µs), an on-chip clock, and a high-speed, 3-wire serial interface.

Power consumption is only 3mW (VDD = 3V) at the 73ksps maximum sampling speed. A 2µA shutdown mode reduces power at slower throughput rates.

The MAX1242 has an internal 2.5V reference, while the MAX1243 requires an external reference. The MAX1243 accepts signals from 0V to VREF, and the reference input range includes the positive supply rail. An external clock accesses data from the 3-wire interface, which connects directly to standard microcontroller I/O ports. The interface is compatible with SPI, QSPI™, and MICROWIRE®.

Excellent AC characteristics and very low power combined with ease of use and small package size make these converters ideal for remote-sensor and data-acquisition applications, or for other circuits with demanding power consumption and space requirements. The MAX1242/MAX1243 are available in 8-pin PDIP and SO packages.

关键特性
  • 以下关键特性由Maxim美信半导体提供：
  • +2.7V to +5.25V Single-Supply Operation
  • 10-Bit Resolution
  • Internal 2.5V Reference (MAX1242)
  • Small Footprint: 8-Pin PDIP and SO Packages
  • Low Power:
  • 3.7mW (73ksps, MAX1242)
  • 3mW (73ksps, MAX1243)
  • 66µW (1ksps, MAX1243)
  • 5µW (Power-Down Mode)
  • Internal Track/Hold
  • SPI/QSPI/MICROWIRE 3-Wire Serial Interface
  • Pin-Compatible 12-Bit Upgrades: MAX1240/MAX1241
    • 热门应用
  • 隔离型数据采集
  • 便携式数据记录
  • 过程控制监视
  • 温度测量
  • 测试设备
