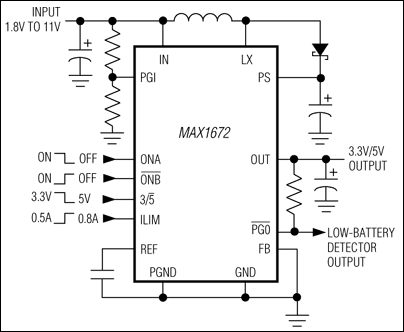

MAX1672 - 典型电路框图：
MAX1672典型电路框图
Maxim美信半导体芯片：
承诺原装正品
专营Maxim美信，真正优化您的供应链
Maxim产品 - MAX1672介绍

MAX1672 - 升/降压型DC-DC转换器，QSOP封装

MAX1672是Maxim美信半导体公司的一款DC-DC开关调节器产品，MAX1672是升/降压型DC-DC转换器，QSOP封装，本站介绍了MAX1672的封装应用图解、特点和优点、功能等，并给出了与MAX1672相关的Maxim元器件型号供参考。

MAX1672 - 升/降压型DC-DC转换器，QSOP封装 - DC-DC开关调节器 - 紧凑的低噪声、无变压器升/降压调节器，仅使用一只电感，具有低输出纹波 - 美信半导体

产品概述

The MAX1672 integrates a step-up DC-DC converter with a linear regulator to provide step-up/down voltage conversion. This device provides a constant output voltage for inputs that vary above and below the output voltage. It has a 1.8V to 11V input range and a preset 3.3V or 5V output. The output can also be set from 1.25V to 5.5V using two resistors. Typical efficiency is 85%.

The MAX1672's step-up/linear-regulator configuration permits the use of a single, physically smaller inductor than can be used with competing SEPIC and flyback configurations. Switch current is also selectable, permitting the use of smaller inductors in low-current applications. The linear regulator also acts as a filter to reduce output ripple voltage.

The MAX1672 has a low 85µA quiescent supply current, which is further reduced to 0.1µA in logic-controlled shutdown. The output voltage is disconnected from the input in shutdown. The MAX1672 also has a PGI/PGO-bar low-battery detector.

The MAX1672 comes in a 16-pin QSOP package (same size as a standard 8-pin SO). For a larger device that delivers more output current, refer to the MAX710/MAX711. The preassembled MAX1672 evaluation kit is available to speed designs.

关键特性
  • 以下关键特性由Maxim美信半导体提供：
  • Step-Up/Down Voltage Conversion
  • 1.8V to 11V Input Range
  • 3.3V/5V or Adjustable Output Voltage Range
  • Output Current:
  • 300mA at 5V (VIN > 2.5V)
  • 150mA at 5V (VIN > 1.8V)
  • Smaller Inductor than SEPIC and Flybacks
  • Load Disconnects from Input in Shutdown
  • Supply Current from Battery:
  • 85µA (No-Load)
  • 0.1µA (Shutdown)
  • PGI/PGO-bar Low-Battery Comparator
  • 16-Pin QSOP Package (Same Footprint as 8-pin SO)
  • No External FETs Required
  • Thermal and Short-Circuit Protection
    • 热门应用
  • 2节至4节AA碱性电池供电的手持设备
  • 3.3V及其它低电压系统
  • 电池供电设备
  • 数码相机
  • 带有交流适配器输入的单节锂电池供电便携设备
