MAX1759 - Buck/boost稳压电荷泵，µMAX封装

MAX1759是Maxim美信半导体公司的一款电荷泵产品，MAX1759是Buck/boost稳压电荷泵，µMAX封装，本站介绍了MAX1759的封装应用图解、特点和优点、功能等，并给出了与MAX1759相关的Maxim元器件型号供参考。

MAX1759 - Buck/boost稳压电荷泵，µMAX封装 - 电荷泵 - 业内尺寸最小的100mA buck/boost方案 - 美信半导体

产品概述

The MAX1759 is a buck/boost regulating charge pump that generates a regulated output voltage from a single lithium-ion (Li+) cell, or two or three NiMH or alkaline cells for small hand-held portable equipment. The MAX1759 operates over a wide +1.6V to +5.5V input voltage range and generates a fixed 3.3V or adjustable (2.5V to 5.5V) output (Dual Mode™). Maxim's unique charge-pump architecture allows the input voltage to be higher or lower than the regulated output voltage. Despite its high 1.5MHz operating frequency, the MAX1759 maintains low 50µA quiescent supply current.

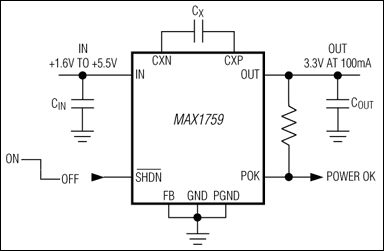

Designed to be an extremely compact buck/boost converter, this device requires only three small ceramic capacitors to build a complete DC-DC converter capable of generating a guaranteed 100mA (min) output current from a +2.5V input. For added flexibility, the MAX1759 also includes an open-drain power-OK (POK) output that signals when the output voltage is in regulation.

The MAX1759 is available in a space-saving 10-pin µMAX package that is 1.09mm high and half the size of an 8-pin SO.

关键特性

以下关键特性由Maxim美信半导体提供：

Regulated Output Voltage (Fixed 3.3V or Adjustable 2.5V to 5.5V)

100mA Guaranteed Output Current

+1.6V to +5.5V Input Voltage Range

Low 50µA Quiescent Supply Current

1µA Shutdown Mode

Load Disconnected from Input in Shutdown

High 1.5MHz Operating Frequency

Uses Small Ceramic Capacitors

Short-Circuit Protection and Thermal Shutdown

Small 10-Pin µMAX Package

热门应用

备用电池升压转换器

Li+电池供电应用

微型设备

转换器
