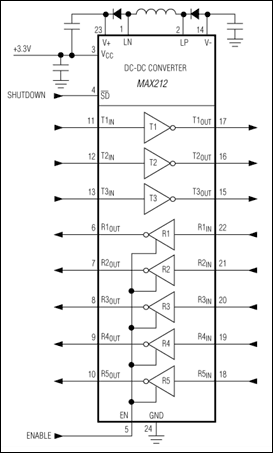

MAX212 - 典型电路框图：
MAX212典型电路框图
Maxim美信半导体芯片：
承诺原装正品
专营Maxim美信，真正优化您的供应链
Maxim产品 - MAX212介绍

MAX212 - +3V供电、低功耗、真RS-232收发器

MAX212是Maxim美信半导体公司的一款驱动器-接收器产品，MAX212是+3V供电、低功耗、真RS-232收发器，本站介绍了MAX212的封装应用图解、特点和优点、功能等，并给出了与MAX212相关的Maxim元器件型号供参考。

MAX212 - +3V供电、低功耗、真RS-232收发器 - 驱动器-接收器 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX212 RS-232 transceiver is intended for 3V-powered EIA/TIA-232E and V.28/V.24 communication interfaces where three drivers and five receivers are needed with minimum power consumption. The operating voltage range extends from 3.6V down to 3.0V while still maintaining true RS-232 and EIA/TIA-562 voltage levels.

A 1µA typical shutdown mode reduces power consumption, extending battery life in portable systems. While shut down, all receivers can remain active or can be disabled under logic control. This enables a system incorporating the CMOS MAX212 to be in low-power shutdown mode and monitor incoming RS-232 activity.

A guaranteed data rate of 120kbps provides compatibility with popular software for communicating with personal computers.

Three-state drivers on all receiver outputs are provided so that multiple receivers, generally of different interface standards, can be wire-ORed at the UART.

The MAX212 is available in both small-outline (SO) and shrink-small-outline (SSOP) packages. The SSOP package occupies less than half of the board area required by the equivalent SO package.

关键特性
  • 以下关键特性由Maxim美信半导体提供：SUPERIOR TO BIPOLAR:
  • Operates from Single +3.0V to +3.6V Supply
  • 24-Pin SSOP or Wide SO Packages
  • Meets All EIA/TIA-232E and EIA/TIA-562 Specifications
  • 3mA Max Supply Current (Unloaded)
  • 1µA Low-Power Shutdown Mode
  • All Receivers Active During Low-Power Shutdown
  • Mouse Compatible at 3.0V
  • Low-Cost, Surface-Mount External Components
  • 120kbps Guaranteed Data Rate-LapLink™ Compatible
  • Three-State Receiver Outputs
  • Evaluation Kit Available
  • Flow-Through Pinout
    • 热门应用
  • 计算机：笔记本电脑/掌上电脑/亚笔记本电脑
  • 仪表
  • 外设
  • 打印机
