MAX2623 - 单片压控振荡器

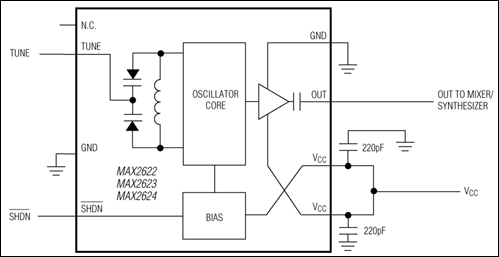

MAX2623是Maxim美信半导体公司的一款时钟发生器和分配器产品，MAX2623是单片压控振荡器，本站介绍了MAX2623的封装应用图解、特点和优点、功能等，并给出了与MAX2623相关的Maxim元器件型号供参考。

MAX2623 - 单片压控振荡器 - 时钟发生器和分配器 - 完备的单芯片900MHz SiGe VCO和缓冲器，采用8引脚µMAX封装，可替代模块设计 - 美信半导体

产品概述

The MAX2622/MAX2623/MAX2624 self-contained voltage-controlled oscillators (VCOs) combine an integrated oscillator and output buffer in a miniature 8-pin µMAX® package.

The inductor and varactor elements of the tank circuits are integrated on-chip, greatly simplifying application of the part. In addition, the center frequency of oscillation and frequency span are factory preset to provide a guaranteed frequency range versus control voltage. An external tuning voltage controls the oscillation frequency. The output signals are buffered by an amplifier stage (easily matched to 50Ω), using only capacitors to provide higher output power and isolate the devices from load impedance variations.

The MAX2622/MAX2623/MAX2624 operate from a +2.7V to +3.3V supply voltage and require only 9mA of supply current. In shutdown mode, the supply current is reduced to 0.1µA.

关键特性

以下关键特性由Maxim美信半导体提供：

Fully Monolithic

Guaranteed Performance

On-Chip 50Ω Output Match

Wide Choice of Frequencies

855MHz to 881MHz (MAX2622)

885MHz to 950MHz (MAX2623)

947MHz to 998MHz (MAX2624)

+2.7V to +3.3V Single-Supply Operation

Low-Current Shutdown Mode

Smaller than Modules (8-pin µMAX package)

热门应用

866MHz至868MHz欧洲ISM波段(MAX2622)

902MHz至928MHz ISM波段，±10.7MHz中频(MAX2623)

902MHz至928MHz ISM波段，45MHz至70MHz中频(MAX2624)

DECT 1/2频率LO (MAX2623)
