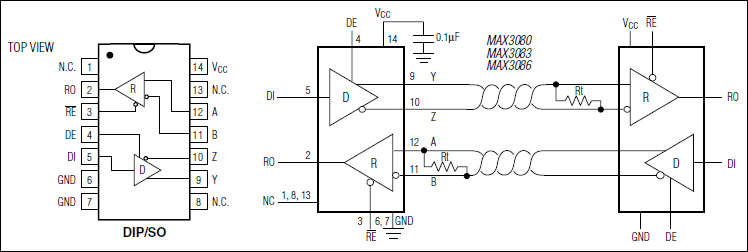

MAX3080是Maxim美信半导体公司的一款传感器与传感器接口产品，MAX3080是失效保护、高速(10Mbps)、限摆率、RS-485/RS-422收发器，本站介绍了MAX3080的封装应用图解、特点和优点、功能等，并给出了与MAX3080相关的Maxim元器件型号供参考。

MAX3080 - 失效保护、高速(10Mbps)、限摆率、RS-485/RS-422收发器 - 传感器与传感器接口 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX3080-MAX3089 high-speed transceivers forRS-485/RS-422 communication contain one driver andone receiver. These devices feature fail-safe circuitry,which guarantees a logic-high receiver output when thereceiver inputs are open or shorted. This means thatthe receiver output will be a logic high if all transmitterson a terminated bus are disabled (high impedance).The MAX3080/MAX3081/MAX3082 feature reducedslew-rate drivers that minimize EMI and reduce reflectionscaused by improperly terminated cables, allowingerror-free data transmission up to 115kbps. TheMAX3083/MAX3084/MAX3085 offer higher driver outputslew-rate limits, allowing transmit speeds up to500kbps. The MAX3086/MAX3087/MAX3088's driverslew rates are not limited, making transmit speeds upto 10Mbps possible. The MAX3089's slew rate isselectable between 115kbps, 500kbps, and 10Mbpsby driving a selector pin with a single three-state driver.

These transceivers typically draw 375µA of supplycurrent when unloaded, or when fully loaded with thedrivers disabled.

All devices have a 1/8-unit-load receiver input impedancethat allows up to 256 transceivers on the bus. TheMAX3082/MAX3085/MAX3088 are intended for halfduplexcommunications, while the MAX3080/MAX3081/MAX3083/MAX3084/MAX3086/MAX3087 are intendedfor full-duplex communications. The MAX3089 is selectablebetween half-duplex and full-duplex operation. Italso features independently programmable receiverand transmitter output phase via separate pins.

关键特性

以下关键特性由Maxim美信半导体提供：

For Fault-Tolerant Applications:
MAX3430: ±80V Fault-Protected, Fail-Safe, 1/4-Unit Load, +3.3V RS-485 Transceiver

For Low-Voltage Applications:
MAX3362: +3.3V, High-Speed, RS-485/RS-422Transceiver in a SOT23 Package

For Multiple Transceiver Applications:
MAX3030E-MAX3033E: ±15kV ESD-Protected,+3.3V, Quad, RS-422 Transmitters
MAX3040-MAX3045: ±10kV ESD-Protected, Quad,+5V, RS-485/RS-422 Transmitters

热门应用

工业控制局域网

电平转换器

RS-422/RS-485通信

用于EMI敏感应用的收发器
