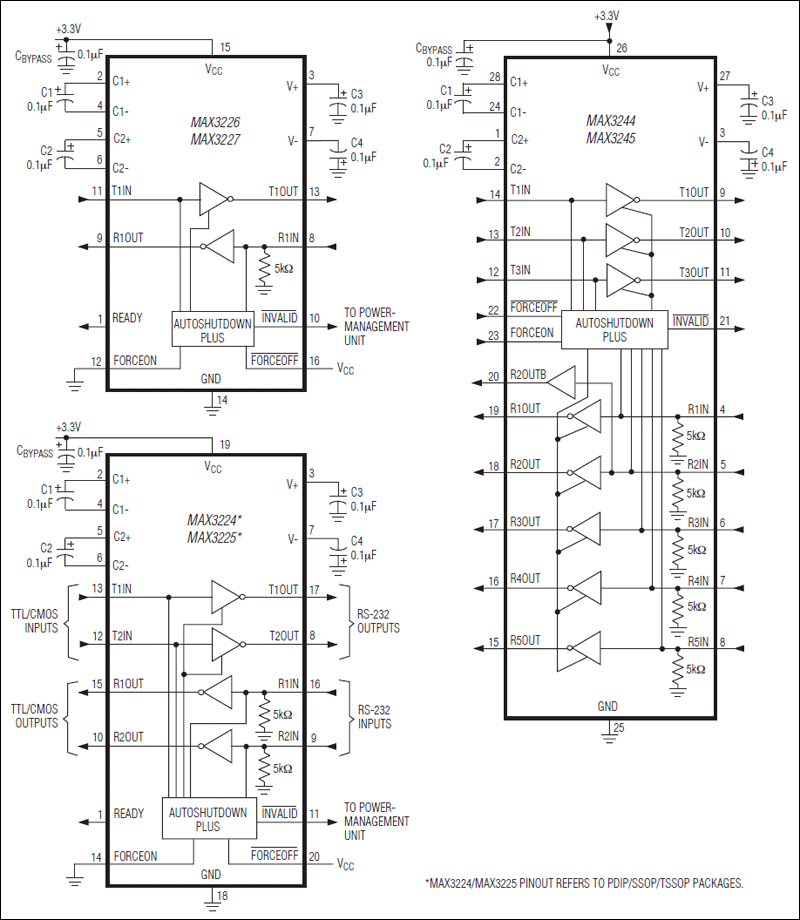

MAX3227 - 典型电路框图：
MAX3227典型电路框图
Maxim美信半导体芯片：
承诺原装正品
专营Maxim美信，真正优化您的供应链
Maxim产品 - MAX3227介绍

MAX3227 - 1µA电源电流、1Mbps、3.0V至5.5V、RS-232收发器，提供AutoShutdown Plus

MAX3227是Maxim美信半导体公司的一款驱动器-接收器产品，MAX3227是1µA电源电流、1Mbps、3.0V至5.5V、RS-232收发器，提供AutoShutdown Plus，本站介绍了MAX3227的封装应用图解、特点和优点、功能等，并给出了与MAX3227相关的Maxim元器件型号供参考。

MAX3227 - 1µA电源电流、1Mbps、3.0V至5.5V、RS-232收发器，提供AutoShutdown Plus - 驱动器-接收器 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX3224–MAX3227/MAX3244/MAX3245 are 3V-powered EIA/TIA-232 and V.28/V.24 communications interfaces with automatic shutdown/wakeup features and high data-rate capabilities.

All devices achieve a 1µA supply current using Maxim's revolutionary AutoShutdown Plus™ feature. These devices automatically enter a low-power shutdown mode when the RS-232 cable is disconnected or the transmitters of the connected peripherals are inactive, and the UART driving the transmitter inputs is inactive for more than 30 seconds. They turn on again when they sense a valid transition at any transmitter or receiver input. AutoShutdown Plus saves power without changes to the existing BIOS or operating system.

The MAX3225/MAX3227/MAX3245 also feature MegaBaud™ operation, guaranteeing 1Mbps for highspeed applications such as communicating with ISDN modems. The MAX3224/MAX3226/MAX3244 guarantee 250kbps operation. The transceivers have a proprietary low-dropout transmitter output stage enabling true RS-232 performance from a +3.0V to +5.5V supply with a dual charge pump. The charge pump requires only four small 0.1µF capacitors for operation from a 3.3V supply. The MAX3224-MAX3227 feature a logic-level output (READY) that asserts when the charge pump is regulating and the device is ready to begin transmitting.

All devices are available in a space-saving TSSOP and SSOP packages.

关键特性
  • 以下关键特性由Maxim美信半导体提供：
  • For Smaller Packaging:
  • MAX3228/MAX3229: +2.5V to +5.5V RS-232 Transceivers in UCSP™
  • For Low-Voltage or Data Cable Applications:
  • MAX3380E/MAX3381E: +2.35V to +5.5V, 1µA, 2 Tx/2 Rx RS-232 Transceivers with ±15kV ESD-Protected I/O and Logic Pins
  • For Integrated ESD Protection:
  • MAX3222E/MAX3232E/MAX3237E/MAX3241E/MAX3246E: ±15kV ESD-Protected, Down to 10nA, +3.0V to +5.5V, Up to 1Mbps, True RS-232 Transceivers (MAX3246E Available in UCSP)
    • 热门应用
  • 电池供电设备
  • 蜂窝电话
  • 手持式装置
  • 笔记本电脑、亚笔记本电脑与掌上电脑
  • 外设
  • 打印机
