MAX3384E - ±15kV ESD保护、3.0V至5.5V、低功耗、高达250kbps、真RS-232收发器

MAX3384E是Maxim美信半导体公司的一款驱动器-接收器产品，MAX3384E是±15kV ESD保护、3.0V至5.5V、低功耗、高达250kbps、真RS-232收发器，本站介绍了MAX3384E的封装应用图解、特点和优点、功能等，并给出了与MAX3384E相关的Maxim元器件型号供参考。

MAX3384E - ±15kV ESD保护、3.0V至5.5V、低功耗、高达250kbps、真RS-232收发器 - 驱动器-接收器 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX3384E is a 3V-powered EIA/TIA-232 and V.28/V.24 communications interface with low power requirements, high data-rate capabilities, and enhanced electrostatic discharge (ESD) protection. All transmitter outputs and receiver inputs are protected to ±15kV using IEC 1000-4-2 Air-Gap Discharge, ±8kV using IEC 1000-4-2 Contact Discharge, and ±15kV using the Human Body Model.

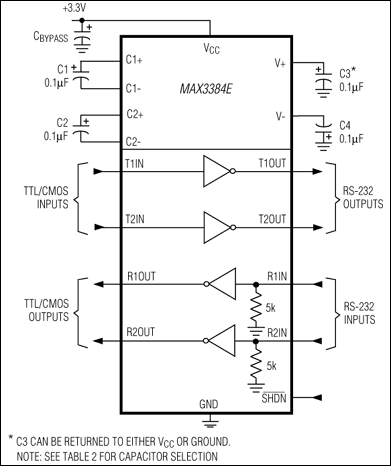

The transceiver has a proprietary low-dropout transmitter output stage, delivering true RS-232 performance from a +3.0V to +5.5V supply with a dual charge pump. The charge pump requires only four small 0.1µF capacitors for operation from a +3.3V supply. Each device is guaranteed to run at data rates of 250kbps while maintaining RS-232 output levels.

The MAX3384E has two receivers and two drivers. It features a 1µA shutdown mode that reduces power consumption and extends battery life in portable systems.

The MAX3384E is available in a space-saving SSOP package in either the commercial (0°C to +70°C) or extended temperature (-40°C to +85°C) range.

关键特性

以下关键特性由Maxim美信半导体提供：

ESD Protection for RS-232 I/O Pins

±15kV—Human Body Model

±8kV—IEC 1000-4-2, Contact Discharge

±15kV—IEC 1000-4-2, Air-Gap Discharge

Latchup Free

300µA Supply Current

1µA Low-Power Shutdown

250kbps Guaranteed Data Rate

250µs Time to Exit Shutdown with 3kΩ Load on V+

6V/µs Guaranteed Slew Rate

Transmitter and Receiver Outputs High Impedance in Shutdown

Meets EIA/TIA-232 Specifications Down to 3.0V

热门应用

电池供电应用

手持式装置

PDA

外设

打印机
