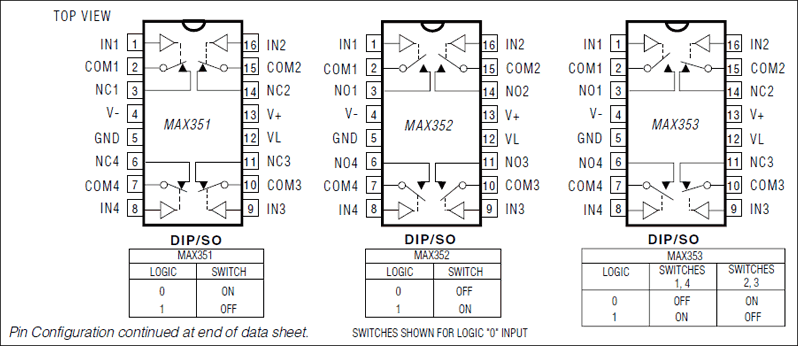

MAX353 - 典型电路框图：
MAX353典型电路框图
Maxim美信半导体芯片：
承诺原装正品
专营Maxim美信，真正优化您的供应链
Maxim产品 - MAX353介绍

MAX353 - 高精度、四路、SPST模拟开关

MAX353是Maxim美信半导体公司的一款保护器产品，MAX353是高精度、四路、SPST模拟开关，本站介绍了MAX353的封装应用图解、特点和优点、功能等，并给出了与MAX353相关的Maxim元器件型号供参考。

MAX353 - 高精度、四路、SPST模拟开关 - 保护器 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX351/MAX352/MAX353 are precision, quad, single-pole single-throw (SPST) analog switches. The MAX351 has four normally closed (NC), and the MAX352 has four normally open (NO) switches. The MAX353 has two NO and two NC switches. All three parts offer low on resistance (less than 35Ω), guaranteed to match within 2Ω between channels and to remain flat over the analog signal range (Δ3Ω max). They also offer low leakage (less than 250pA at +25°C and less than 6nA at +85°C) and fast switching (turn-on time less than 175ns and turn-off time less than 145ns).

The MAX351/MAX352/MAX353 are fabricated with Maxim's new improved 44V silicon-gate process. Design improvements guarantee extremely low charge injection (10pC), low power consumption (35µW), and electrostatic discharge (ESD) greater than 2000V. The 44V maximum breakdown voltage allows rail-to-rail analog signal handling.

These monolithic switches operate with a single positive supply (+10V to +30V) or with split supplies (±4.5V to ±20V) while retaining CMOS-logic input compatibility and fast switching. CMOS inputs provide reduced input loading.

关键特性
  • 以下关键特性由Maxim美信半导体提供：
  • Low On Resistance < 22Ω Typical (35Ω Max)
  • Guaranteed Matched On Resistance Between Channels < 2Ω
  • Guaranteed Flat On Resistance Over Analog Signal Range Δ3Ω Max
  • Guaranteed Charge Injection < 10pC
  • Guaranteed Off-Channel Leakage < 6nA at +85°C
  • ESD Guaranteed > 2000V per Method 3015.7
  • Single-Supply Operation (+10V to +30V)
  • Bipolar-Supply Operation (±4.5V to ±20V)
  • TTL-/CMOS-Logic Compatibility
  • Rail-to-Rail Analog Signal Handling Capability
    • 热门应用
  • 电池供电应用
  • 通信系统
  • 引导与控制系统
  • 平面显示器
  • 军用无线装置
  • PBX、PABX
  • 采样保持电路
  • 测试设备
