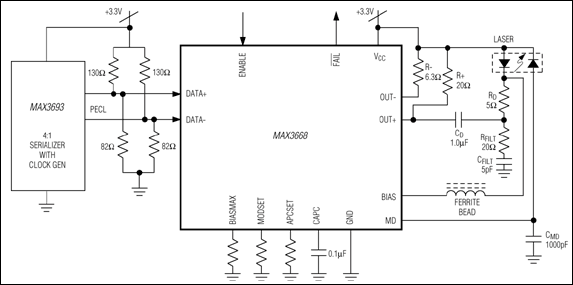

MAX3668 - 典型电路框图：
MAX3668典型电路框图
Maxim美信半导体芯片：
承诺原装正品
专营Maxim美信，真正优化您的供应链
Maxim产品 - MAX3668介绍

MAX3668 - +3.3V、622Mbps、SDH/SONET激光驱动器，带有自动功率控制

MAX3668是Maxim美信半导体公司的一款光电产品产品，MAX3668是+3.3V、622Mbps、SDH/SONET激光驱动器，带有自动功率控制，本站介绍了MAX3668的封装应用图解、特点和优点、功能等，并给出了与MAX3668相关的Maxim元器件型号供参考。

MAX3668 - +3.3V、622Mbps、SDH/SONET激光驱动器，带有自动功率控制 - 光电产品 - 功耗最低的622Mbps激光驱动器 - 美信半导体

产品概述

The MAX3668 is a complete, +3.3V laser driver with automatic power control (APC) circuitry for SDH/SONET applications up to 622Mbps. It accepts differential PECL inputs, provides bias and modulation currents, and operates over a temperature range of -40°C to +85°C.

An APC feedback loop is incorporated to maintain a constant average optical power over temperature and lifetime. The wide modulation current range of 5mA to75mA and bias current of 1mA to 80mA are easy to program, making this product ideal for use in various SDH/SONET applications.

The MAX3668 also provides enable control and a failure-monitor output to indicate when the APC loop is unable to maintain the average optical power. The MAX3668 is available in a 5mm 32-pin TQFP package as well as in dice.

关键特性
  • 以下关键特性由Maxim美信半导体提供：
  • Single +3.3V or +5.0V Operation
  • 38mA Supply Current at +3.3V
  • Programmable Modulation Current from 5mA to 75mA
  • Programmable Bias Current from 1mA to 80mA
  • Rise/Fall Time < 200ps
  • Automatic Average Power Control with Failure Monitor
  • Complies with ANSI, ITU, and Bellcore SONET/SDH Specifications
  • Enable Control
    • 热门应用
  • 622Mbps SDH/SONET接入节点
  • 激光驱动器发送器
  • 段再生器
