MAX3762 - 低功耗、622Mbps限幅放大器，带有无抖动功率检测输出，用于LAN

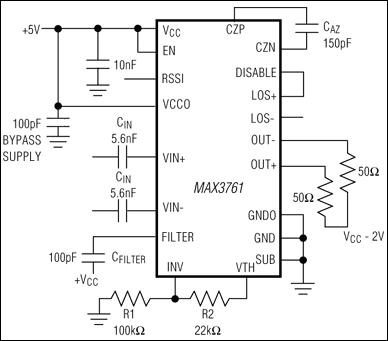

MAX3762是Maxim美信半导体公司的一款光电产品产品，MAX3762是低功耗、622Mbps限幅放大器，带有无抖动功率检测输出，用于LAN，本站介绍了MAX3762的封装应用图解、特点和优点、功能等，并给出了与MAX3762相关的Maxim元器件型号供参考。

MAX3762 - 低功耗、622Mbps限幅放大器，带有无抖动功率检测输出，用于LAN - 光电产品 - 提供15ps PWD，具有4mV输入灵敏度 - 美信半导体

产品概述

The MAX3761/MAX3762 limiting amplifiers, with 4mV sensitivity and PECL data outputs, are optimized for operation in low-cost, 622Mbps, LAN/ATM LAN fiber optics applications.

An integrated power detector senses the input signal's amplitude. A received-signal-strength indicator (RSSI) gives an analog indication of the power level, while the complementary loss-of-signal (LOS) outputs indicate if the input power level exceeds the programmed threshold level. The LOS threshold can be adjusted to detect signal amplitudes between 3mVP-P and 100mVP-P, providing a 15dB LOS adjustment in fiber optic receivers. The LOS outputs have 3.5dB of hysteresis, which prevents chatter when input signal levels are small. The MAX3761's LOS outputs are compatible with TTL-logic levels. The MAX3762 has PECL LOS outputs.

DISABLE and LOS can be used to implement a squelch function, which turns off the data outputs when the input signal is below the programmed threshold.

关键特性

以下关键特性由Maxim美信半导体提供：

Chatter-Free Power Detector with Programmable Loss-of-Signal Outputs

4mV Input Sensitivity

PECL Data Outputs

Single 5V Power Supply

250ps Output Edge Speed

Low 15ps Pulse-Width Distortion

TTL Loss-of-Signal Interface Logic—MAX3761

PECL Loss-of-Signal Interface Logic—MAX3762

热门应用

155Mbps LAN/ATM LAN接收器

622Mbps LAN/ATM LAN接收器
