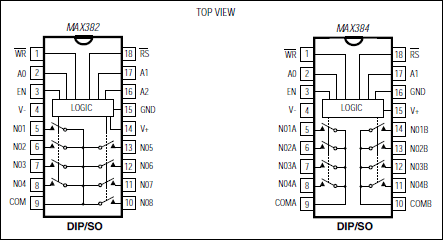

MAX382 - 典型电路框图：

MAX382 - 低电压、8通道/双4通道、多路复用器，可锁存输入

MAX382是Maxim美信半导体公司的一款宽带交换产品，MAX382是低电压、8通道/双4通道、多路复用器，可锁存输入，本站介绍了MAX382的封装应用图解、特点和优点、功能等，并给出了与MAX382相关的Maxim元器件型号供参考。

MAX382 - 低电压、8通道/双4通道、多路复用器，可锁存输入 - 宽带交换 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX382/MAX384 are low-voltage, CMOS, 1-of-8 and dual 4-channel muxes with latchable digital inputs. They feature low-voltage operation from a +2.7V to +16.5V single supply and from ±3V to ±8V dual supplies. Pin compatible with the DG428/DG429, these muxes offer low on-resistance (100Ω max) matched to within 4Ω max between channels. Additional features include off leakage less than 2.5nA at +85°C and guaranteed low charge injection (10pC max). ESD protection is greater than 2000V per Method 3015.7.

关键特性

以下关键特性由Maxim美信半导体提供：

Pin-Compatible with Industry-Standard DG428/DG429, DG528/DG529, MAX368/MAX369

Single-Supply Operation (+2.7V to +16.5V)

Bipolar Supply Operation (±3V to ±8V)

Low Power Consumption (< 300µW)

Low On-Resistance, 100Ω max

Guaranteed On-Resistance Match Between Channels, 4Ω max

Low Leakage, 2.5nA at +85°C

TTL/CMOS-Logic Compatible

热门应用

音频信号切换
