产品概述

The MAX4066/MAX4066A quad, SPST, CMOS analog switches are designed to provide superior performance over the industry-standard devices. These new switches feature guaranteed operation from +2.0V to +16V and are fully specified at 3V, 5V, and 12V. Both parts offer 45Ω on-resistance and 2Ω channel-to-channel matching at 12V, plus 4Ω flatness over the specified signal range.

Each device is controlled by TTL/CMOS input levels and can be used as a bilateral switch or multiplexer/demultiplexer.

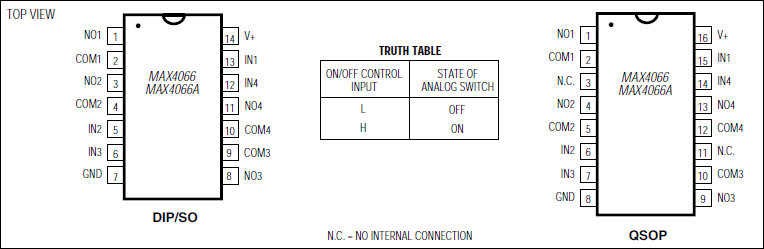

Low off leakage current (100pA for the MAX4066A) and low power consumption (0.5µW) make the MAX4066/ MAX4066A ideal for battery-operated equipment. These parts are also suitable for low-distortion audio applications. Both devices are available in 14-pin DIP and SO packages, as well as a 16-pin QSOP. ESD protection is greater than 2000V per Method 3015.7.

关键特性

以下关键特性由Maxim美信半导体提供：

Pin Compatible with 74HC4066

Guaranteed On-Resistance:

170Ω max (3V supply)

45Ω max (12V supply)

Guaranteed Match Between Channels:

4Ω max (MAX4066)

2Ω max (MAX4066A)

Guaranteed Low Leakage Currents:

1nA at +25°C (MAX4066)

100pA at +25°C (MAX4066A)

Single-Supply Operation from +2.0V to +16V

V+ to GND Signal Handling

TTL/CMOS-Logic Compatible

Low Power Consumption: 0.5µW

Low Crosstalk: -86dB

Low Off Isolation: -58dB

Low Distortion: 0.03%

Wide Bandwidth: > 100MHz

热门应用

音频/视频信号切换

电池供电应用

通信系统

低电压数据采集

采样保持电路
