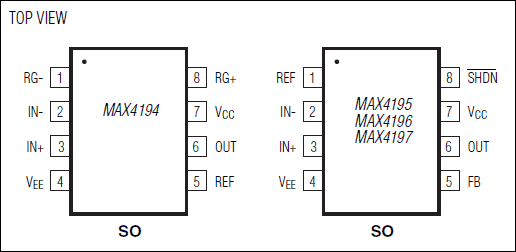

MAX4194 - 典型电路框图：

MAX4194 - 微功耗、单电源、满摆幅、精密仪表放大器

MAX4194是Maxim美信半导体公司的一款放大器产品，MAX4194是微功耗、单电源、满摆幅、精密仪表放大器，本站介绍了MAX4194的封装应用图解、特点和优点、功能等，并给出了与MAX4194相关的Maxim元器件型号供参考。

MAX4194 - 微功耗、单电源、满摆幅、精密仪表放大器 - 放大器 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX4194 is a variable-gain precision instrumentation amplifier that combines Rail-to-Rail; single-supply operation, outstanding precision specifications, and a high gain bandwidth. This amplifier is also offered in three fixed-gain versions: the MAX4195 (G = +1V/V), the MAX4196 (G = +10V/V), and the MAX4197 (G = +100V/V). The fixed-gain instrumentation amplifiers feature a shutdown function that reduces the quiescent current to 8µA. A traditional three operational amplifier configuration is used to achieve maximum DC precision.

The MAX4194–MAX4197 have rail-to-rail outputs and inputs that can swing to 200mV below the negative rail and to within 1.1V of the positive rail. All parts draw only 93µA and operate from a single +2.7V to +7.5V supply or from dual ±1.35V to ±3.75V supplies. These amplifiers are offered in 8-pin SO packages and are specified for the extended temperature range (-40°C to +85°C).

See the MAX4198/MAX4199 data sheet for single-supply, precision differential amplifiers.

关键特性

以下关键特性由Maxim美信半导体提供：

Low Power Consumption Is Ideal for Remote-Sensing and Battery-Powered Applications

+2.7V Single-Supply Operation

Low Power Consumption

93µA Supply Current

8µA Shutdown Current (MAX4195/MAX4196/MAX4197)

Precision Specifications Maximize Sensor Peformance

High Common-Mode Rejection: 115dB (G = +10V/V)

Input Common-Mode Range Extends 200mV Below GND

Low 50µV Input Offset Voltage (G ≥ +100V/V)
