MAX4219 - 高速、单电源、增益为+2、闭环、满摆幅缓冲器，带有使能端

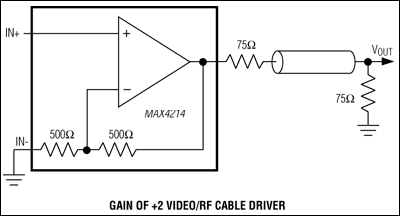

MAX4219是Maxim美信半导体公司的一款视频芯片产品，MAX4219是高速、单电源、增益为+2、闭环、满摆幅缓冲器，带有使能端，本站介绍了MAX4219的封装应用图解、特点和优点、功能等，并给出了与MAX4219相关的Maxim元器件型号供参考。

MAX4219 - 高速、单电源、增益为+2、闭环、满摆幅缓冲器，带有使能端 - 视频芯片 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX4214/MAX4215/MAX4217/MAX4219/MAX4222 are precision, closed-loop, gain of +2 (or -1) buffers featuring high slew rates, high output current drive, and low differential gain and phase error. They operate with a single 3.15V to 11V supply or with ±1.575V to ±5.5V dual supplies. The input common-mode voltage range extends 100mV beyond the negative power-supply rail, and the output swings Rail-to-Rail.

These devices require only 5.5mA of quiescent supply current while achieving a 230MHz -3dB bandwidth and a 600V/µs slew rate. In addition, the MAX4215/MAX4219 have a disable feature that reduces the supply current to 400µA per buffer. Input voltage noise is only 10nV per root-Hz , and input current noise is only 1.3pA per root-Hz. This buffer family is ideal for low-power/low-voltage applications requiring wide bandwidth, such as video, communications, and instrumentation systems. For space-sensitive applications, the MAX4214 comes in a miniature 5-pin SOT23 package.

关键特性

以下关键特性由Maxim美信半导体提供：

Internal Precision Resistors for Closed-Loop Gains of +2V/V or -1V/V

High Speed

230MHz -3dB Bandwidth

90MHz 0.1dB Gain Flatness (MAX4219/MAX4222)

600V/µs Slew Rate

Single 3.3V/5.0V Operation

Outputs Swing Rail-to-Rail

Input Common-Mode Range Extends Beyond VEE

Low Differential Gain/Phase Error: 0.03%/0.04°

Low Distortion at 5MHz

-72dBc SFDR

-71dB Total Harmonic Distortion

High Output Drive: ±120mA

Low 5.5mA Supply Current

400µA Shutdown Supply Current (MAX4215/MAX4219)

Space-Saving SOT23, µMAX®, or QSOP Packages

热门应用

ADC接口

电池供电应用

CCD成像

视频线驱动器

视频多路复用

视频路由与切换系统
