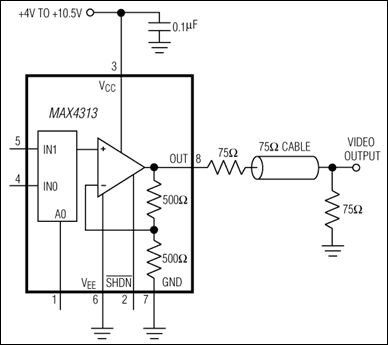

MAX4315是Maxim美信半导体公司的一款模拟开关和复用器产品，MAX4315是高速、低功耗、单电源、多通道、视频多路复用器-放大器，本站介绍了MAX4315的封装应用图解、特点和优点、功能等，并给出了与MAX4315相关的Maxim元器件型号供参考。

MAX4315 - 高速、低功耗、单电源、多通道、视频多路复用器-放大器 - 模拟开关和复用器 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX4310–MAX4315 single-supply mux-amps combine high-speed operation, low-glitch switching, and excellent video specifications. The six products in this family are differentiated by the number of multiplexer inputs and the gain configuration. The MAX4310/MAX4311/MAX4312 integrate 2-/4-/8-channel multiplexers, respectively, with an adjustable gain amplifier optimized for unity-gain stability. The MAX4313/MAX4314/MAX4315 integrate 2-/4-/8-channel multiplexers, respectively, with a +2V/V fixed-gain amplifier. All devices have 40ns channel switching time and low 10mVp-p switching transients, making them ideal for video-switching applications. They operate from a single +4V to +10.5V supply, or from dual supplies of ±2V to ±5.25V, and they feature Rail-to-Rail outputs and an input common-mode voltage range that extends to the negative supply rail.

The MAX4310/MAX4311/MAX4312 have a -3dB bandwidth of 280MHz/345MHz/265MHz and up to a 460V/µs slew rate. The MAX4313/MAX4314/MAX4315, with 150MHz/127MHz/97MHz -3dB bandwidths up to a 540V/µs slew rate, and a fixed gain of +2V/V, are ideally suited for driving back-terminated cables. Quiescent supply current is as low as 6.1mA, while low-power shutdown mode reduces supply current to as low as 560µA and places the outputs in a high-impedance state. The MAX4310–MAX4315's internal amplifiers maintain an open-loop output impedance of only 8Ω over the full output voltage range, minimizing the gain error and bandwidth changes under loads typical of most rail-to-rail amplifiers. With differential gain and phase errors of 0.06% and 0.08°, respectively, these devices are ideal for broadcast video applications.

关键特性

以下关键特性由Maxim美信半导体提供：

Single-Supply Operation Down to +4V

345MHz -3dB Bandwidth (MAX4311)
150MHz -3dB Bandwidth (MAX4313)

540V/µs Slew Rate (MAX4313)

Low 6.1mA Quiescent Supply Current

40ns Channel Switching Time

Ultra-Low 10mVp-p Switching Transient

0.06%/0.08° Differential Gain/Phase Error

Rail-to-Rail Outputs: Drives 150Ω to within 730mV of the Rails

Input Common-Mode Range Includes Negative Rail

Low-Power Shutdown Mode

Available in Space-Saving 8-Pin µMAX® and 16-Pin QSOP Packages

热门应用

75Ω视频电缆驱动器

广播级视频

闪速ADC输入缓冲器

高速信号处理

医学成像

多媒体产品

视频交叉开关

视频信号多路复用
