MAX4401 - 单/双/四路、低成本、单电源、满摆幅运算放大器，带有关断

MAX4401是Maxim美信半导体公司的一款放大器产品，MAX4401是单/双/四路、低成本、单电源、满摆幅运算放大器，带有关断，本站介绍了MAX4401的封装应用图解、特点和优点、功能等，并给出了与MAX4401相关的Maxim元器件型号供参考。

MAX4401 - 单/双/四路、低成本、单电源、满摆幅运算放大器，带有关断 - 放大器 - 满摆幅、800kHz运算放大器，采用微型SC70和SOT23-8封装 - 美信半导体

产品概述

The MAX4400–MAX4403 low-cost, general-purpose op amps offer rail-to-rail outputs, draw only 320µA of quiescent current, and operate from a single +2.5V to +5.5V supply. For additional power conservation, the MAX4401 offers a low-power shutdown mode that reduces supply current to 1µA (max) and puts the amplifier's output in a high-impedance state. These devices deliver ±1.4mA of output current and are unity-gain stable with a 1MHz gain-bandwidth product driving capacitive loads up to 400pF. The MAX4400–MAX4403 are specified to +125°C, making them suitable for use in a variety of harsh environments, such as automotive applications.

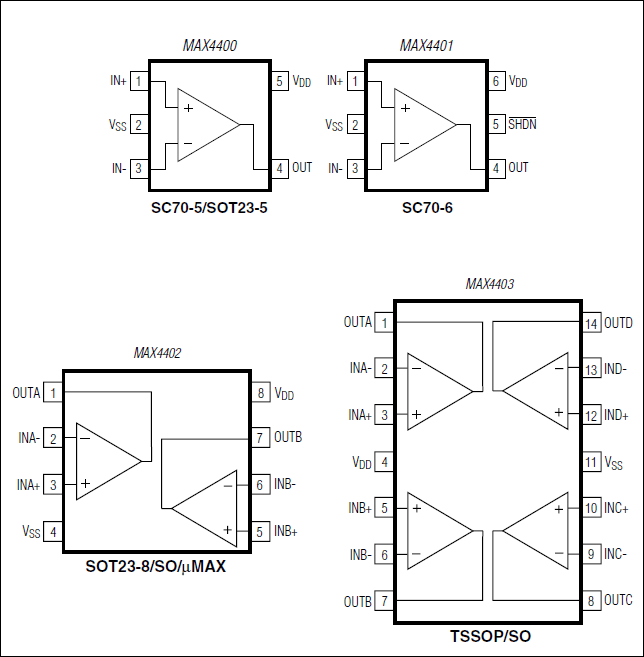

The MAX4400 single amplifier is available in ultra-small 5-pin SC70 and space-saving 5-pin SOT23 packages. The single MAX4401 includes the shutdown feature and is available in a 6-pin SC70. The MAX4402 is a dual amplifier available in 8-pin SOT23, µMAX®, and SO packages. The MAX4403 quad amplifier is packaged in a 14-pin TSSOP or SO.

关键特性

以下关键特性由Maxim美信半导体提供：

Single +2.5V to +5.5V Supply Voltage Range

320µA Quiescent Current per Amplifier

1µA (max) Shutdown Mode (MAX4401)

Available in Space-Saving Packages

5-Pin SC70 (MAX4400)

6-Pin SC70 (MAX4401)

8-Pin SOT23/µMAX (MAX4402)

110dB AVOL with 2kΩ Load

0.015% THD with 2kΩ Load

Rail-to-Rail Output Voltage Swing

1.4mA of Sink and Source Load Current

Unity-Gain Stable up to CLOAD = 400pF

Ground-Sensing Inputs

热门应用

汽车传感器

基站/无线基础架构

计算机：台式机、工作站和服务器

计算机：主板

计算机：笔记本电脑

电子点火模块

工业：过程测量与控制

红外接收器

仪表与终端

面板表

便携式通信

可编程逻辑控制器(PLC)

传感器信号检测

单电源供电过零检测器
