MAX4450 - 超小型、低成本、210MHz、单电源运算放大器，带有满摆幅输出

MAX4450是Maxim美信半导体公司的一款视频芯片产品，MAX4450是超小型、低成本、210MHz、单电源运算放大器，带有满摆幅输出，本站介绍了MAX4450的封装应用图解、特点和优点、功能等，并给出了与MAX4450相关的Maxim元器件型号供参考。

MAX4450 - 超小型、低成本、210MHz、单电源运算放大器，带有满摆幅输出 - 视频芯片 - 业内首款视频放大器，采用超小尺寸SC70封装 - 美信半导体

产品概述

The MAX4450 single and MAX4451 dual op amps are unity-gain-stable devices that combine high-speed performance with rail-to-rail outputs. Both devices operate from a +4.5V to +11V single supply or from ±2.25V to ±5.5V dual supplies. The common-mode input voltage range extends beyond the negative power-supply rail (ground in single-supply applications).

The MAX4450/MAX4451 require only 6.5mA of quiescent supply current per op amp while achieving a 210MHz -3dB bandwidth and a 485V/µs slew rate. Both devices are an excellent solution in low-power/low-voltage systems that require wide bandwidth, such as video, communications, and instrumentation.

The MAX4450 is available in the ultra-small 5-pin SC70 package, while the MAX4451 is available in a space-saving 8-pin SOT23 and SO packages.

关键特性

以下关键特性由Maxim美信半导体提供：

Ultra-Small SC705 and SOT23 Packages

Low Cost

High Speed

210MHz -3dB Bandwidth

55MHz 0.1dB Gain Flatness

485V/µs Slew Rate

Single +4.5V to +11V Operation

Rail-to-Rail Outputs

Input Common-Mode Range Extends Beyond VEE

Low Differential Gain/Phase: 0.02%/0.08°

Low Distortion at 5MHz

-65dBc SFDR

-63dB Total Harmonic Distortion

热门应用

ADC接口

电池供电应用

CCD成像

数码相机

机顶盒

视频监视系统

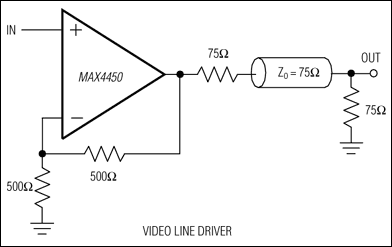

视频线驱动器

视频路由与切换系统
