MAX4486是Maxim美信半导体公司的一款放大器产品，MAX4486是单/双/四路、低成本、单电源7MHz、满摆幅运算放大器，本站介绍了MAX4486的封装应用图解、特点和优点、功能等，并给出了与MAX4486相关的Maxim元器件型号供参考。
MAX4486 - 单/双/四路、低成本、单电源7MHz、满摆幅运算放大器 - 放大器 - 高速/低成本运算放大器系列产品，单路采用SC70-5封装，双路采用8引脚SOT23封装 - 美信半导体
The MAX4484/MAX4486/MAX4487 single/dual/quad low-cost general-purpose op amps operate from a single +2.7V to +5.5V supply. The op amps are unity-gain stable with a 7MHz gain-bandwidth product, capable of driving an external 2kΩ load with rail-to-rail output swing. The amplifiers are stable with capacitive loads of up to 100pF. The MAX4484/MAX4486/MAX4487 are specified from -40°C to +125°C, making them suitable for a variety of harsh environments.

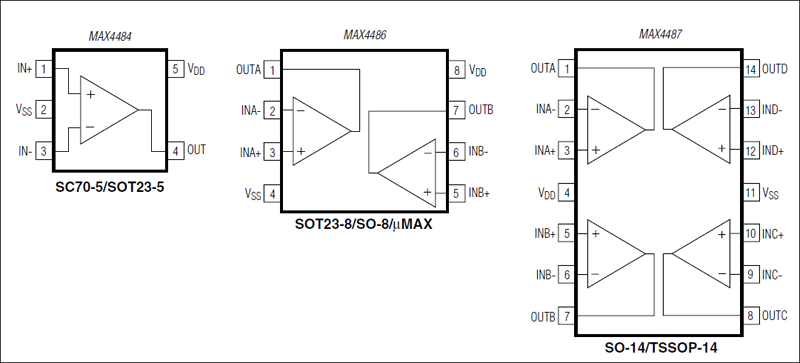

The single MAX4484 is available in the ultra-small 5-pin SC70, while the dual MAX4486 is packaged in the space-saving 8-pin SOT23 and µMAX® packages. The quad MAX4487 is available in the 14-pin SO and TSSOP packages.
