MAX4509 - 故障保护、高电压、单8选1/双4选1多路复用器，带有输出箝位

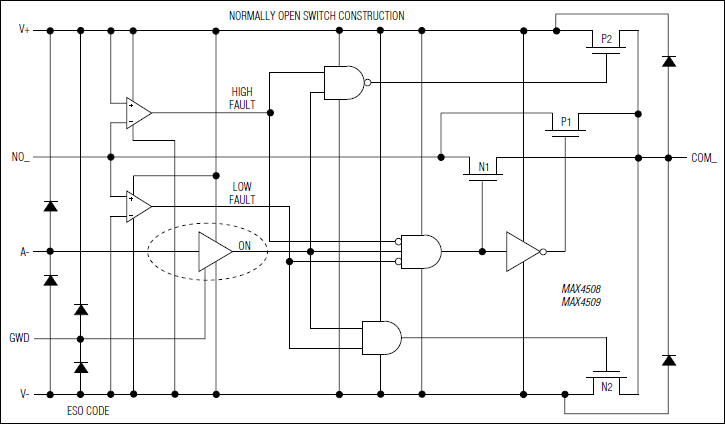

MAX4509是Maxim美信半导体公司的一款保护器产品，MAX4509是故障保护、高电压、单8选1/双4选1多路复用器，带有输出箝位，本站介绍了MAX4509的封装应用图解、特点和优点、功能等，并给出了与MAX4509相关的Maxim元器件型号供参考。

MAX4509 - 故障保护、高电压、单8选1/双4选1多路复用器，带有输出箝位 - 保护器 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX4508/MAX4509 are 8-to-1 and dual 4-to-1 fault-protected multiplexers that are pin compatible with the industry-standard DG508/DG509. The MAX4508/MAX4509 operate with dual supplies of ±4.5V to ±20V or a single supply of +9V to +36V. These multiplexers feature fault-protected inputs, rail-to-rail signal handling capability, and overvoltage clamping at 150mV beyond the rails.

Both parts offer ±40V overvoltage protection with supplies off and ±25V protection with supplies on. On-resistance is 400Ω max and is matched between channels to 15Ω max. All digital inputs have TTL logic thresholds, ensuring both TTL and CMOS logic compatibility when using a single +12V supply or dual ±15V supplies.

关键特性

以下关键特性由Maxim美信半导体提供：

±40V Fault Protection with Power Off
±25V Fault Protection with ±15V Supplies

Rail-to-Rail Signal Handling

No Power-Supply Sequencing Required

All Channels Off with Power Off

Output Clamped to Appropriate Supply Voltage During Fault Condition

1kΩ Output Clamp Resistance During Overvoltage

400Ω max On-Resistance

20ns Fault-Response Time

±4.5V to ±20V Dual Supplies
+9V to +36V Single Supply

TTL/CMOS-Compatible Logic Inputs

热门应用

航空电子

数据采集系统

工业与过程控制

冗余/备份系统

信号路由
