产品概述

The MAX4551/MAX4552/MAX4553 are quad, low-voltage, single-pole/single-throw (SPST) analog switches. Each switch is protected against ±15kV electrostatic discharge (ESD) shocks, without latchup or damage. On-resistance (100Ωmax) is matched between switches to 4Ω max, and is flat (8Ω max) over the specified signal range. Each switch can handle rail-to-rail analog signals. The off-leakage current is only 1nA at +25°C and 10nA at +85°C.

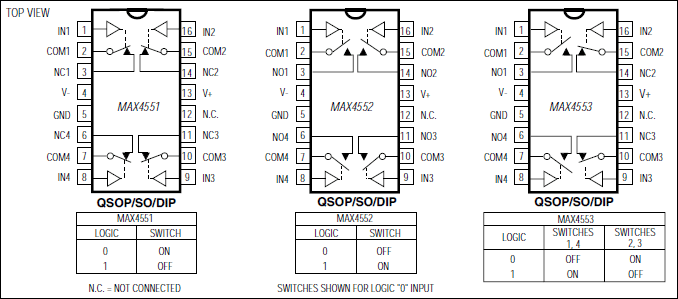

The MAX4551 has four normally closed (NC) switches, and the MAX4552 has four normally open (NO) switches. The MAX4553 has two NC and two NO switches.

These CMOS switches can operate with dual power supplies ranging from ±2V to ±6V or a single supply between +2V and +12V. They are fully specified for single +2.7V operation.

All digital inputs have +0.8V and +2.4V logic thresholds, ensuring TTL/CMOS-logic compatibility when using ±5V or a single +5V supply.

关键特性

以下关键特性由Maxim美信半导体提供：

±15kV ESD Protection per IEC 1000-4-2

+2V to +12V Single Supply

±2V to ±6V Dual Supplies

120Ω Signal Paths with ±5V Supplies

Low Power Consumption: < 1µW

4 Separately Controlled SPST Switches

Rail-to-Rail Signal Handling

Pin-Compatible with Industry-Standard DG211/DG212/DG213

TTL/CMOS-Compatible Inputs with Dual ±5V or Single +5V Supply

热门应用

音频信号切换

航空电子

电池供电应用

数据采集

网络

测试设备
