MAX4647 - 25Ω、SPST模拟开关，SOT23-6封装

MAX4647是Maxim美信半导体公司的一款保护器产品，MAX4647是25Ω、SPST模拟开关，SOT23-6封装，本站介绍了MAX4647的封装应用图解、特点和优点、功能等，并给出了与MAX4647相关的Maxim元器件型号供参考。

MAX4647 - 25Ω、SPST模拟开关，SOT23-6封装 - 保护器 - 高压、SPST模拟开关，采用微型SOT封装 - 美信半导体

产品概述

The MAX4647/MAX4648 are dual-supply single-pole/single-throw (SPST) switches. On-resistance is 25Ω max and flat (2Ω max) over the specified signal range. Each switch can handle rail-to-rail analog signals. Off-leakage currentis only 1nA max at +25°C. They conduct analog or digitalsignals equally well in either direction. The primary applicationareas are in the switching and routing of signals intelecommunications and test equipment.

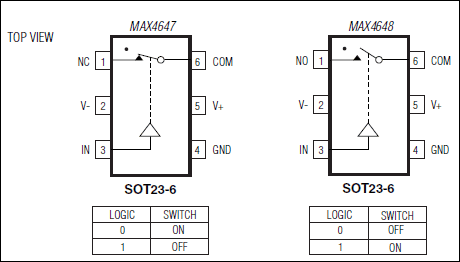

The MAX4647/MAX4648 are single SPST analog switches.The MAX4647 has one normally closed (NC) switch, andthe MAX4648 has one normally open (NO) switch. Thesedevices operate from a single +9V to +36V supply or fromdual ±4.5V to ±20V supplies. The MAX4647/MAX4648 areavailable in tiny 6-pin SOT23 packages.

关键特性

以下关键特性由Maxim美信半导体提供：

Low On-Resistance 25Ω max (±15V Supplies)

Guaranteed RON Flatness Over Specified Signal Range (2Ω max)

VL Logic Supply Not Required

Rail-to-Rail Signal Handling

±15V and Single 12V Supply Operation

Low Leakage (1nA max)

Fast Switching Speeds

tON = 100ns

tOFF = 100ns

热门应用

音频系统

航空电子

通信系统

DSL

PBX、PABX系统

PC多媒体板

冗余系统

继电器替代品

测试设备
