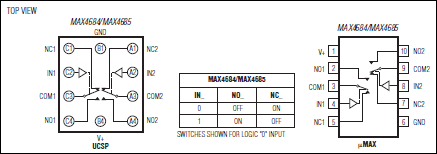

MAX4685是Maxim美信半导体公司的一款宽带交换产品，MAX4685是0.5Ω/0.8Ω、低电压、双路SPDT模拟开关，UCSP封装，本站介绍了MAX4685的封装应用图解、特点和优点、功能等，并给出了与MAX4685相关的Maxim元器件型号供参考。

MAX4685 - 0.5Ω/0.8Ω、低电压、双路SPDT模拟开关，UCSP封装 - 宽带交换 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX4684/MAX4685 low on-resistance (RON), low-voltage, dual single-pole/double-throw (SPDT) analog switches operate from a single +1.8V to +5.5V supply. The MAX4684 features a 0.5Ω (max) RON for its NC switch and a 0.8Ω (max) RON for its NO switch at a +2.7V supply. The MAX4685 features a 0.8Ω max on-resistance for both NO and NC switches at a +2.7V supply.

Both parts feature break-before-make switching action (2ns) with tON = 50ns and tOFF = 40ns at +3V. The digital logic inputs are 1.8V logic-compatible with a +2.7V to +3.3V supply.

The MAX4684/MAX4685 are packaged in the chipscale package (UCSP™), significantly reducing the required PC board area. The chip occupies only a 2.0mm x 1.50mm area. The 4 x 3 array of solder bumps are spaced with a 0.5mm bump pitch.

关键特性

以下关键特性由Maxim美信半导体提供：

12-Bump, 0.5mm-Pitch UCSP

NC Switch RON

0.5Ω max (+2.7V Supply) (MAX4684)

0.8Ω max (+2.7V Supply) (MAX4685)

NO Switch RON

0.8Ω max (+2.7V Supply)

RON Match Between Channels

0.06Ω (max)

RON Flatness Over Signal Range

0.15Ω (max)

+1.8V to +5.5V Single-Supply Operation

Rail-to-Rail Signal Handling

1.8V Logic Compatibility

Low Crosstalk: -68dB (100kHz)

High Off-Isolation: -64dB (100kHz)

THD: 0.03%

50nA (max) Supply Current

Low Leakage Currents

1nA (max) at TA = +25°C

热门应用

音频/视频信号切换

电池供电设备

蜂窝电话

通信电路

调制解调器

MP3播放器

PCMCIA卡

电源切换

继电器替代品

扬声器-耳机开关
