产品概述

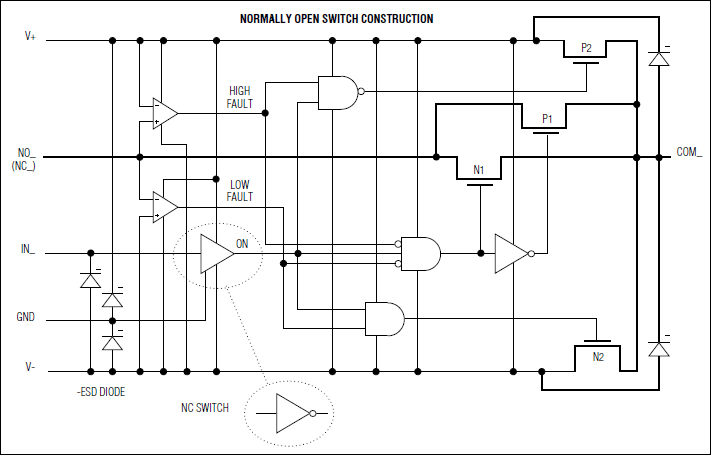

The MAX4711/MAX4712/MAX4713 are fault-protected, Rail-to-Rail, low-voltage analog switches featuring low on-resistance and guaranteed on-resistance flatness over the specified signal range. Due to the fault protection feature the analog switch input (NO_ or NC_) and output (COM_) pins are not symmetrical. The fault protection feature allows for the analog input to go beyond the plus or minus supplies without the device drawing excessive amounts of current from the analog inputs. When the analog inputs are driven beyond the supply rails when the switch is on, it will sense a fault and turn itself off and the analog switch output will be clamped to the same polarity supply as the input signal and will not go beyond the supply rails. This feature protects any electronic circuitry connected to the output from excessive voltages present on the analog inputs.

The MAX4711/MAX4712/MAX4713 are quad, singlepole/single-throw (SPST) analog switches. The MAX4711 has four normally closed switches (NC), the MAX4712 has four normally open switches (NO), and the MAX4713 has two NO and two NC switches. Switching times are less than 125ns for tON, and less than 80ns for tOFF. These switches operate from a single +2.7V to +11V supply or from dual ±2.7V to ±5.5V supplies. All digital inputs have +0.8V to +2.4V logic thresholds, ensuring both TTL and CMOS logic compatibility when using ±4.5V to ±5.5V or single +4.5V to +11V supplies.

关键特性

以下关键特性由Maxim美信半导体提供：

Fault-Protected Analog Inputs

±12V Fault Protection with Power Off

±7V Fault Protection with ±5V Supplies

+12V and -7V Fault Protection with +5V Supply

+12V and -9V Fault Protection with +3V Supply

Fault-Protected Digital Inputs May Exceed V+ Supply Rail

All Switches Off with Power Off

Rail-to-Rail Signal Handling

Output Clamped to Appropriate Supply Voltages During Fault Condition

25Ω (max) RON at +25°C

1Ω (max) On-Resistance Match Between Channels

Single- and Dual-Supply Operation

Pin-Compatible with Industry-Standard MAX391/MAX392/MAX393

TTL- and CMOS-Compatible Logic Inputs

热门应用

航空电子

电池供电系统

通信系统

数据采集

工业与过程控制系统

冗余/备份系统

信号路由

测试设备
