MAX4714 - 0.8Ω、低电压、单电源、SPDT模拟开关，SC70封装

MAX4714是Maxim美信半导体公司的一款宽带交换产品，MAX4714是0.8Ω、低电压、单电源、SPDT模拟开关，SC70封装，本站介绍了MAX4714的封装应用图解、特点和优点、功能等，并给出了与MAX4714相关的Maxim元器件型号供参考。

MAX4714 - 0.8Ω、低电压、单电源、SPDT模拟开关，SC70封装 - 宽带交换 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX4714 is a low on-resistance, low-voltage single-pole/double-throw (SPDT) analog switch that operates from a single +1.6V to +3.6V supply. The MAX4714 has break-before-make switching. This device also has fast switching speeds (tON = 18ns max, tOFF = 12ns max).

When powered from a +3V supply, the MAX4714 features 0.8Ω max on-resistance (RON), with 0.18Ω max RON matching and flatness. The digital logic input is 1.8V CMOS compatible when using a single +3V supply.

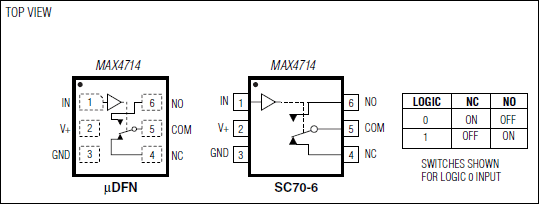

The MAX4714 is pin compatible with the MAX4599 and is available in a 6-pin SC70 or µDFN package.

关键特性

以下关键特性由Maxim美信半导体提供：

Low RON

0.8Ω max (+3V Supply)

2.5Ω max (+1.8V Supply)

0.18Ω max RON Flatness (+3V Supply)

+1.6V to +3.6V Single-Supply Operation

Available in 6-Pin µDFN (1.5mm x 1mm) and SC70Packages

Fast Switching: tON = 18ns max, tOFF = 12ns max

1.8V CMOS Logic Compatible (+3V Supply)

Pin Compatible with MAX4599

Guaranteed Break-Before-Make

热门应用

音频/视频信号切换

电池供电设备

蜂窝电话

通信电路

硬盘驱动器

低电压数据采集系统

调制解调器

PCMCIA卡

电源切换
