MAX5100 - +2.7V至+5.5V、低功耗、四路、并行8位DAC，满摆幅电压输出

MAX5100是Maxim美信半导体公司的一款数据转换器和采样-保持电路产品，MAX5100是+2.7V至+5.5V、低功耗、四路、并行8位DAC，满摆幅电压输出，本站介绍了MAX5100的封装应用图解、特点和优点、功能等，并给出了与MAX5100相关的Maxim元器件型号供参考。

MAX5100 - +2.7V至+5.5V、低功耗、四路、并行8位DAC，满摆幅电压输出 - 数据转换器和采样-保持电路 - 功耗最低的四通道、并行接口8位DAC - 美信半导体

产品概述

The MAX5100 parallel-input, voltage-output, quad 8-bit digital-to-analog converter (DAC) operates from a single +2.7V to +5.5V supply and comes in a space-saving 20-pin TSSOP package. Internal precision buffers swing Rail-to-Rail, and the reference input range includes both ground and the positive rail. All four DACs share a common reference input.

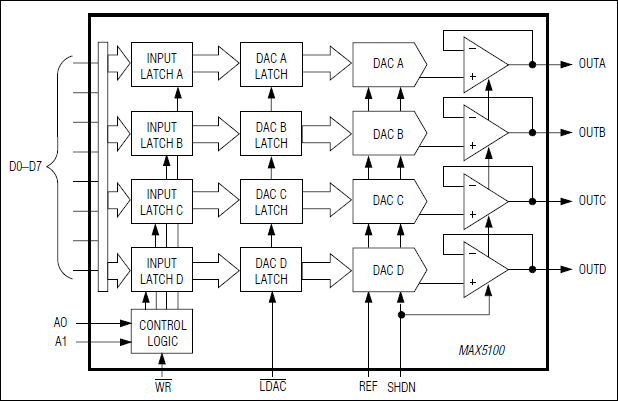

The MAX5100 provides double-buffered logic inputs: four 8-bit buffer registers followed by four 8-bit DAC registers. This keeps the DAC outputs from changing during the write operation. An asynchronous control pin, active-low LDAC , allows for simultaneous updating of the DAC registers.The MAX5100 features a shutdown mode that reduces current to 1nA, as well as a power-on reset mode that resets all registers to code 00 hex on power-up.

关键特性

以下关键特性由Maxim美信半导体提供：

+2.7V to +5.5V Single-Supply Operation

Ultra-Low Supply Current

0.4mA while Operating

1nA in Shutdown Mode

Ultra-Small 20-Pin TSSOP Package

Ground to VDD Reference Input Range

Output Buffer Amplifiers Swing Rail-to-Rail

Double-Buffered Registers for Synchronous Updating

Power-On Reset Sets All Registers to Zero

热门应用

数字增益与失调控制

便携式仪表

功率放大器偏置控制

可编程衰减器
