MAX5101 - +2.7V至+5.5V、低功耗、三路、并行8位DAC，满摆幅电压输出

MAX5101是Maxim美信半导体公司的一款数据转换器和采样-保持电路产品，MAX5101是+2.7V至+5.5V、低功耗、三路、并行8位DAC，满摆幅电压输出，本站介绍了MAX5101的封装应用图解、特点和优点、功能等，并给出了与MAX5101相关的Maxim元器件型号供参考。

MAX5101 - +2.7V至+5.5V、低功耗、三路、并行8位DAC，满摆幅电压输出 - 数据转换器和采样-保持电路 - 功耗最低的三通道、并行接口8位DAC - 美信半导体

产品概述

The MAX5101 parallel-input, voltage-output, triple 8-bit digital-to-analog converter (DAC) operates from a single +2.7V to +5.5V supply and comes in a space-saving 16-pin TSSOP package. Internal precision buffers swing Rail-to-Rail. For all three DACs, the internal reference voltage is tied to VDD.

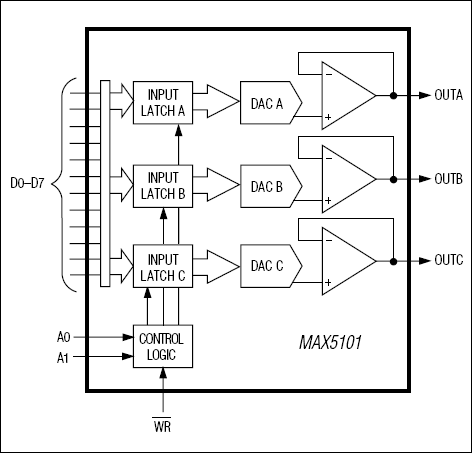

The MAX5101 has separate input latches for each of its three DACs. Data is transferred to the input latches from a common 8-bit input port. The DACs are individually selected through address inputs A0 and A1 and are updated by bringing active-low WR low.The MAX5101 features a 1µA software shutdown mode, as well as a power-on reset mode that resets all registers to code 00 hex on power-up.

关键特性

以下关键特性由Maxim美信半导体提供：

+2.7V to +5.5V Single-Supply Operation

Ultra-Low Supply Current

0.3mA while Operating

1µA in Software Shutdown Mode

Ultra-Small 16-Pin TSSOP Package

Output Buffer Amplifiers Swing Rail-to-Rail

Power-On Reset Sets All Registers to Zero

热门应用

数字增益与失调控制

便携式仪表

功率放大器偏置控制

可编程衰减器
