MAX514 - CMOS、四路、12位、串行输入乘法DAC

MAX514是Maxim美信半导体公司的一款数据转换器和采样-保持电路产品，MAX514是CMOS、四路、12位、串行输入乘法DAC，本站介绍了MAX514的封装应用图解、特点和优点、功能等，并给出了与MAX514相关的Maxim元器件型号供参考。

MAX514 - CMOS、四路、12位、串行输入乘法DAC - 数据转换器和采样-保持电路 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

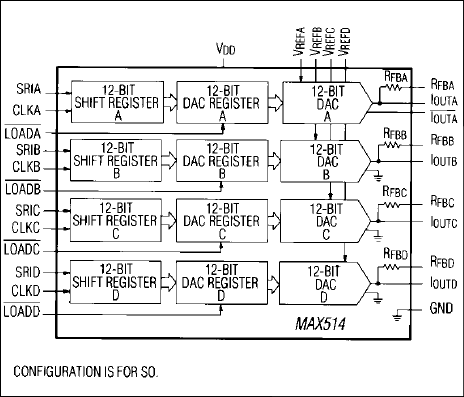

The MAX514 contains four 12-bit R-2R multiplying digital-to-analog converters (DACs), each with a serial-in parallel-out shift register, a DAC register, and control logic. The MAX514’s 3-wire serial interface design minimizes the number of package pins and internal level translators, so it uses less board space and dissipates less power (10mW max) than parallel-interface devices.

When used with microprocessors (µPs) with a serial port, the MAX514 minimizes digital-noise feedthrough from its logic input pins to its analog output. To further reduce noise, the µP serial port can be used as a dedicated analog bus and kept inactive while the MAX514 is in use. Serial interfacing also simplifies opto-coupler or transformer-isolated applications. This device uses low-tempco thin-film resistors, laser trimmed to ±1 LSB linearity, with gain accuracy better than ±1½ LSB. The MAX514 is specified with a +5V power supply. All logic inputs are TTL and CMOS compatible. It comes in space-saving 24-pin DIP and 28-pin SO packages.

关键特性

以下关键特性由Maxim美信半导体提供：

Four 12-Bit Accurate DACs

Fast 3-Wire Serial Interface

Low Differential Nonlinearity: at ±½ LSB Max

Low Integral Nonlinearity: at ±1 LSB Max

Gain Accuracy to at ±1½ LSB Max

Low Gain Tempco: 5ppm/°C Max

Operates from a Single +5V Power Supply

TTL/CMOS Compatible

Available in 24-Pin DIP and 28-Pin SO Packages

热门应用

µP控制系统

任意波形发生器(AWG)

自动测试设备

数字增益/失调调节

工业过程控制

运动控制系统

可编程放大器/衰减器
