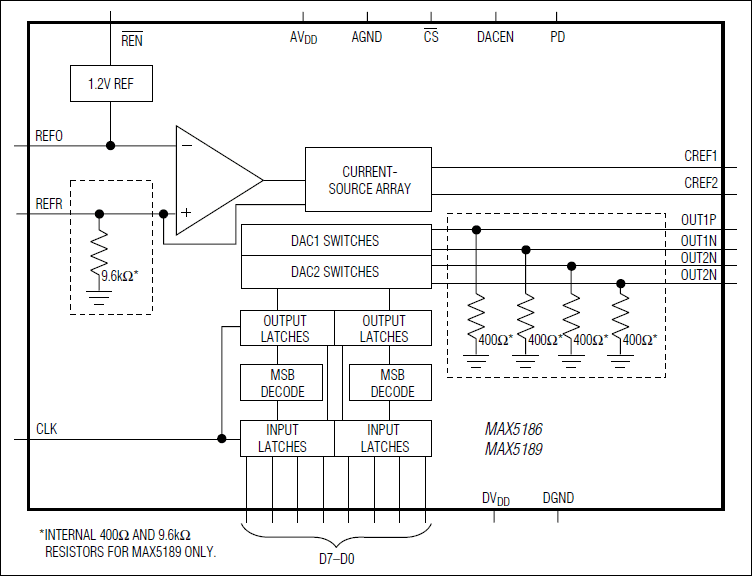

MAX5189 - 典型电路框图：
MAX5189典型电路框图
Maxim美信半导体芯片：
承诺原装正品
专营Maxim美信，真正优化您的供应链
Maxim产品 - MAX5189介绍

MAX5189 - 双路、8位、40MHz、电流/电压、同时输出DAC

MAX5189是Maxim美信半导体公司的一款数据转换器和采样-保持电路产品，MAX5189是双路、8位、40MHz、电流/电压、同时输出DAC，本站介绍了MAX5189的封装应用图解、特点和优点、功能等，并给出了与MAX5189相关的Maxim元器件型号供参考。

MAX5189 - 双路、8位、40MHz、电流/电压、同时输出DAC - 数据转换器和采样-保持电路 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX5186 contains two 8-bit, simultaneous-update, current-output digital-to-analog converters (DACs) designed for superior performance in communications systems requiring analog signal reconstruction with low distortion and low-power operation. The MAX5189 provides equal specifications, with on-chip precision resistors for voltage output operation. The MAX5186/ MAX5189 are designed for a 10pV-s glitch operation to minimize unwanted spurious signal components at the output. An on-board 1.2V bandgap circuit provides a well-regulated, low-noise reference that can be disabled for external reference operation.

The MAX5186/MAX5189 are designed to provide a high level of signal integrity for the least amount of power dissipation. Both DACs operate from a single supply voltage of 2.7V to 3.3V. Additionally, these DACs have three modes of operation: normal, low-power standby, and complete shutdown, which provides the lowest possible power dissipation with a 1µA (max) shutdown current. A fast wake-up time (0.5µs) from standby mode to full DAC operation allows power conservation by activating the DACs only when required.

The MAX5186/MAX5189 are packaged in a 28-pin QSOP and are specified for the extended (-40°C to +85°C) temperature range. For higher resolution, dual 10-bit versions, refer to the MAX5180/MAX5183 data sheet.

关键特性
  • 以下关键特性由Maxim美信半导体提供：
  • 2.7V to 3.3V Single-Supply Operation
  • Wide Spurious-Free Dynamic Range:70dB at fOUT = 2.2MHz
  • Fully Differential Outputs for Each DAC
  • ±0.5% FSR Gain Mismatch at fOUT = 2.2MHz
  • ±0.15° Phase Mismatch at fOUT = 2.2MHz
  • Low-Current Standby or Full Shutdown Modes
  • Internal 1.2V, Low-Noise Bandgap Reference
  • Small 28-Pin QSOP Package
    • 热门应用
  • 任意波形发生器(AWG)
  • 数字信号处理(DSP)
  • 成像
  • I、Q信号重建
  • 发送信号
