MAX526 - 带有校准的、四路、电压输出、12位DAC

MAX526是Maxim美信半导体公司的一款数据转换器和采样-保持电路产品，MAX526是带有校准的、四路、电压输出、12位DAC，本站介绍了MAX526的封装应用图解、特点和优点、功能等，并给出了与MAX526相关的Maxim元器件型号供参考。

MAX526 - 带有校准的、四路、电压输出、12位DAC - 数据转换器和采样-保持电路 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

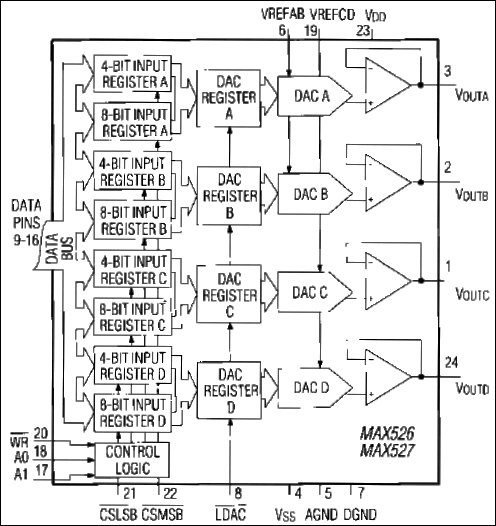

The MAX526/MAX527 contain four 12-bit, voltage-output digital-to-analog converters (DACs). Precision output buffer amplifiers are included on-chip to provide voltage outputs. The MAX527 operates with ±5V power supplies, while the MAX526 utilizes -5V and +12V to +15V supplies. Offset, gain, and linearity are factory calibrated to provide the MAX526’s 1LSB total unadjusted error (TUE).

These devices feature double-buffered interface logic with a 12-bit input register and a 12-bit DAC register. Data in the DAC register sets the DAC output voltage. The MAX526/MAX527 have an 8-bit-wide data bus. Data is loaded into the input register using the two write operations with an 8-bit LSB write load and a 4-bit MSB write load. An asynchronous load DAC (active-low LDAC) input transfers data from the input register to the DAC register. All logic inputs are TTL and CMOS compatible.

The MAX526/MAX527 are available in 24-pin, 300 mil plastic DIP, Ceramic SB, and wide SO packages.

关键特性

以下关键特性由Maxim美信半导体提供：

Reference Input Range Includes Ground (C, D grades)

Full 12-bit Performance Without Adjustments

1 LSB Total Unadjusted Error ( MAX526)

Buffered Voltage Outputs

fast Output Settling

3µs for MAX526

5µs for MAX527

Double-Buffered Digital Inputs

Microprocessor and TTL/CMOS Compatible

±5V supply Operation (MAX527)

热门应用

任意函数波形发生器

自动校准

自动测试设备

数字增益与失调调节

工业控制

机器及运动控制
