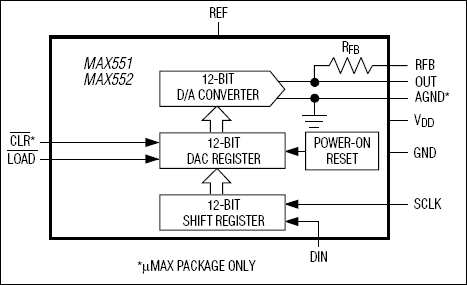

MAX552 - 典型电路框图：
MAX552典型电路框图
Maxim美信半导体芯片：
承诺原装正品
专营Maxim美信，真正优化您的供应链
Maxim产品 - MAX552介绍

MAX552 - +3V/+5V、12位、串行、乘法DAC，10引脚µMAX封装

MAX552是Maxim美信半导体公司的一款数据转换器和采样-保持电路产品，MAX552是+3V/+5V、12位、串行、乘法DAC，10引脚µMAX封装，本站介绍了MAX552的封装应用图解、特点和优点、功能等，并给出了与MAX552相关的Maxim元器件型号供参考。

MAX552 - +3V/+5V、12位、串行、乘法DAC，10引脚µMAX封装 - 数据转换器和采样-保持电路 - 单通道、串行、电流输出DAC，采用µMAX封装 - 美信半导体

产品概述

The MAX551/MAX552 are 12-bit, current-output, 4-quadrant multiplying digital-to-analog converters (DACs). These devices are capable of providing unipolar or bipolar outputs when operating from either a single +5V (MAX551) or +3V (MAX552) power supply. An internal power-on-reset circuit clears all DAC registers on power-up, setting the DAC output voltage to 0V.

The SPI™/QSPI™ and MICROWIRE™-compatible 3-wire serial interface saves board space and reduces power dissipation compared with parallel-interface devices. The MAX551/MAX552 feature double-buffered interface logic with a 12-bit input register and a 12-bit DAC register. Data in the DAC register sets the DAC output voltage. Data is loaded into the input register through the serial interface. The active-low LOAD input transfers data from the input register to the DAC register, updating the DAC output voltage.The MAX551/MAX552 are available in an 8-pin DIP package or a space-saving 10-pin µMAX package. The µMAX package provides an asynchronous clear (CLR-bar) input that clears all DAC registers when pulled to GND, setting the output voltage to 0V.

关键特性
  • 以下关键特性由Maxim美信半导体提供：
  • Single-Supply Operation:
  • +4.5V to +5.25V (MAX551)
  • +2.7V to +3.6V (MAX552)
  • 12.5MHz 3-Wire Serial Interface
  • SPI/QSPI and MICROWIRE Compatible
  • Power-On Reset Clears DAC Output to Zero
  • Asynchronous Clear Input Clears DAC Outputto Zero
  • Voltage Mode or Bipolar Mode Operation witha Single Power Supply
  • Schmitt-Trigger Digital Inputs for Direct Optocoupler Interface
  • 0.4µA Supply Current
  • 10-Pin µMAX Package
    • 热门应用
  • µP控制系统
  • 自动校准
  • 数控滤波器
  • 增益调节
  • 运动控制系统
  • 过程控制I/O板
  • 可编程放大器/衰减器
  • 变送器驱动器
