MAX561是Maxim美信半导体公司的一款驱动器-接收器产品，MAX561是3.3V收发器、两个EIA TIA 562接收器，关断后保持有效，本站介绍了MAX561的封装应用图解、特点和优点、功能等，并给出了与MAX561相关的Maxim元器件型号供参考。
MAX561 - 3.3V收发器、两个EIA TIA 562接收器，关断后保持有效 - 驱动器-接收器 - Maxim美信半导体高性能芯片品质 - 美信半导体

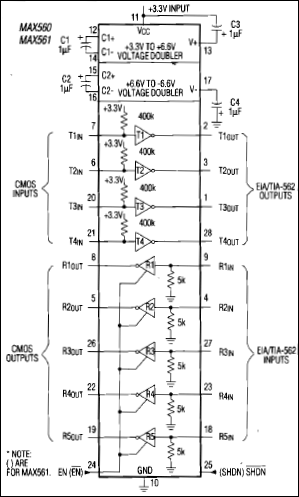

The MAX560/MAX561 are the first +3.3V-powered devices to implement the EIA/TIA-562 standard, which guarantees interoperability with RS-232 interfaces. The MAX560/MAX561 are guaranteed to operate with a +3.0V power supply at a 20kbits/sec data rate while maintaining ±3.7V EIA/TIA-562 signal levels.
The MAX560/MAX561 include four line drivers, five receivers, a shutdown mode, and a receiver-enable input. An on-board charge-pump voltage converter converts the +3.3V input to the ±6.6V needed to comply with the EIA/TIA-562 output levels. The MAX560 has an active-low shutdown and an active-high receiver enable. In shutdown mode, two receivers are active, allowing unidirectional communication for peripheral monitoring. The MAX561 has an active-high shutdown and an active-low receiver enable. In shutdown mode, all receivers are in a high-impedance, three-state mode.
The MAX560/MAX561 are available in a standard 28-pin wide small outline (SO) package and a 28-pin shrink small outline package (SSOP), which requires 40% of the board space of the SO package. Each operates with four 1µF capacitors, further reducing board space.
