MAX563 - +3.3V供电、EIA TIA 562双收发器，关断后接收器保持有效

MAX563是Maxim美信半导体公司的一款驱动器-接收器产品，MAX563是+3.3V供电、EIA TIA 562双收发器，关断后接收器保持有效，本站介绍了MAX563的封装应用图解、特点和优点、功能等，并给出了与MAX563相关的Maxim元器件型号供参考。

MAX563 - +3.3V供电、EIA TIA 562双收发器，关断后接收器保持有效 - 驱动器-接收器 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

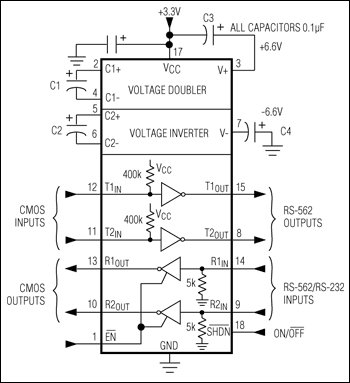

The MAX563 is a +3.3V-powered EIA/TIA-562 transceiver with two transmitters and two receivers. Because it implements the EIA/TIA-562 standard, the MAX563 communicates with RS-232 transceivers, yet consumes far less power; this makes it ideal for battery-powered, hand-held computers. And, the MAX563 guarantees a 116kbps data rate while maintaining ±3.7V EIA/TIA-562 signal levels, which makes it compatible with LapLink® software.

An on-board charge pump converts the +3.3V supply to the ±6.6V needed to produce the EIA/TIA-562 output voltage levels. Four 0.1µF charge-pump capacitors and a bypass capacitor of similar size are the only external components required.

When the MAX563's charge pumps and transmitters are shut down to save power, the receivers remain active to continuously monitor signals from external devices (for example, ring indicator from modems). The two receivers' outputs can be enabled and disabled independently of the shutdown function to allow two ports-generally of different types-to be wire-OR connected at the UART.

关键特性

以下关键特性由Maxim美信半导体提供：

Guaranteed Interoperability with RS-232

Operates from a Single +3.0V to +3.6V Supply

2 Drivers, 2 Receivers

Receivers Active in Shutdown Mode

Low-Power Shutdown: 10µA Max

Small Package-18-Pin Wide SO

Three-State TTL/CMOS Receiver Outputs

116kbps Guaranteed Data Rate

热门应用

条码扫描仪

电池供电应用

手持终端

笔记本电脑和掌上电脑
