MAX6250 - 低噪声、高精度+2.5V/+4.096V/+5V电压基准

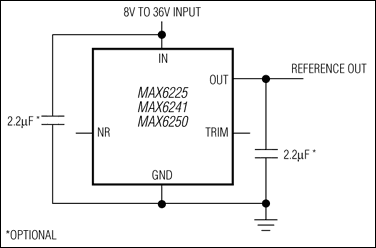

MAX6250是Maxim美信半导体公司的一款美信芯片产品，MAX6250是低噪声、高精度+2.5V/+4.096V/+5V电压基准，本站介绍了MAX6250的封装应用图解、特点和优点、功能等，并给出了与MAX6250相关的Maxim元器件型号供参考。

MAX6250 - 低噪声、高精度+2.5V/+4.096V/+5V电压基准 - 美信芯片 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX6225/MAX6241/MAX6250 are low-noise, precision voltage references with extremely low 1ppm/°C temperature coefficients and excellent ±0.02% initial accuracy. These devices feature buried-zener technology for lowest noise performance. Load-regulation specifications are guaranteed for source and sink currents up to 15mA. Excellent line and load regulation and low output impedance at high frequency make them ideal for high-resolution data-conversion systems up to 16 bits.

The MAX6225 is set for 2.500V output, the MAX6241 is set for 4.096V output, and the MAX6250 is set for 5.000V output. All three devices provide for the option of external trimming and noise reduction.

关键特性

以下关键特性由Maxim美信半导体提供：

Low 1.0ppm/°C Temperature Coefficient

Very Low 1.5µVp-p Noise (0.1Hz to 10Hz)

±0.02% Initial Accuracy

±15mA Output Source and Sink Current

Low, 18mW Power Consumption (MAX6225)

Industry-Standard Pinout

Optional Noise Reduction and Voltage Trim

Excellent Transient Response

8-Pin SO Package Available

Low 20ppm/1000h Long-Term Stability

Stable for All Capacitive Loads

热门应用

A/D转换器

自动测试设备(ATE)

数字电压表

高精度工业与过程控制

高精度基准

高分辨率模数转换器

精密电流源
