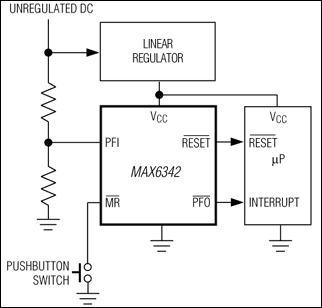

MAX6344是Maxim美信半导体公司的一款监控电路、电压监测、排序产品，MAX6344是6引脚、微处理器复位电路，带有电源失效比较器，本站介绍了MAX6344的封装应用图解、特点和优点、功能等，并给出了与MAX6344相关的Maxim元器件型号供参考。

MAX6344 - 6引脚、微处理器复位电路，带有电源失效比较器 - 监控电路、电压监测、排序 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX6342-MAX6345 family of microprocessor (µP) supervisory circuits monitors power supplies in digital systems. These devices significantly improve system reliability and accuracy compared to separate ICs or discrete components.

The MAX6342-MAX6345 provide factory-trimmed VCC reset threshold voltages from 2.33V to 4.63V and operate with supply voltages between +1V and +5.5V. A +1.25V threshold detector allows for a power-fail warning, for low-battery detection, or for monitoring another power supply. The MAX6342 contains an active-low MR input and an active-low push-pull reset. The MAX6343 and MAX6344 are identical to the MAX6342 except they provide an active-low, open-drain reset and an active-high, push-pull reset, respectively. The MAX6345 provides a second reset output in place of the active-low MR input to give it an active-high push-pull reset and an active-low push-pull reset.

All of the devices are packaged in a miniature 6-pin SOT23.

关键特性

以下关键特性由Maxim美信半导体提供：

Small 6-Pin SOT23 Package

Precision Factory-Set VCC Reset Thresholds Between 2.33V and 4.63V

Guaranteed Active-Low RESET Valid to VCC = +1V

100ms min Reset Pulse Width

Debounced CMOS-Compatible Manual-Reset Input

Voltage Monitor for Power-Fail or Low-Battery Warning

热门应用

嵌入式控制系统

多电压系统

网络设备

便携式电池供电设备

便携式计算机

电信设备
