MAX682 - 3.3V输入、稳压输出5V的电荷泵

MAX682是Maxim美信半导体公司的一款电荷泵产品，MAX682是3.3V输入、稳压输出5V的电荷泵，本站介绍了MAX682的封装应用图解、特点和优点、功能等，并给出了与MAX682相关的Maxim元器件型号供参考。

MAX682 - 3.3V输入、稳压输出5V的电荷泵 - 电荷泵 - 每100mA输出只需1µF电容 - 美信半导体

产品概述

The MAX682/MAX683/MAX684 charge-pump regulators generate 5V from a 2.7V to 5.5V input. They are specifically designed to serve as high-efficiency auxiliary supplies in applications that demand a compact design. The MAX682, MAX683, and MAX684 deliver 250mA, 100mA, and 50mA output current, respectively.

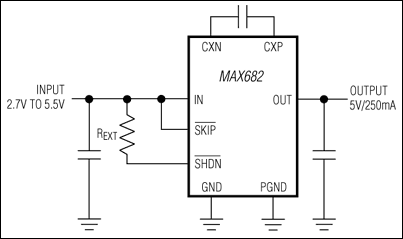

These complete 5V regulators require only one resistor and three external capacitors—no inductors are needed. High switching frequencies (externally adjustable up to 2MHz) and a unique regulation scheme allow the use of capacitors as small as 1µF per 100mA of output current. The MAX683/MAX684 are offered in a space-saving 8-pin µMAX package that is only 1.1mm high, while the MAX682 is available in an 8-pin SO.

关键特性

以下关键特性由Maxim美信半导体提供：

Ultra-Small: 1µF Capacitors per 100mA of Output Current

No Inductors Required

1.1mm Height in µMAX Package (MAX683/MAX684)

Up to 250mA Output Current (MAX682)

Regulated ±4% Output Voltage

50kHz to 2MHz Adjustable Switching Frequency

2.7V to 5.5V Input Voltage

100µA Quiescent Current in Pulse-Skipping Mode

0.1µA Shutdown Current

热门应用

3.3V至5V本地转换应用

3V至5V GSM SIMM卡

备用电池升压转换器

电池供电应用

闪存电源

微型设备

PCMCIA卡
