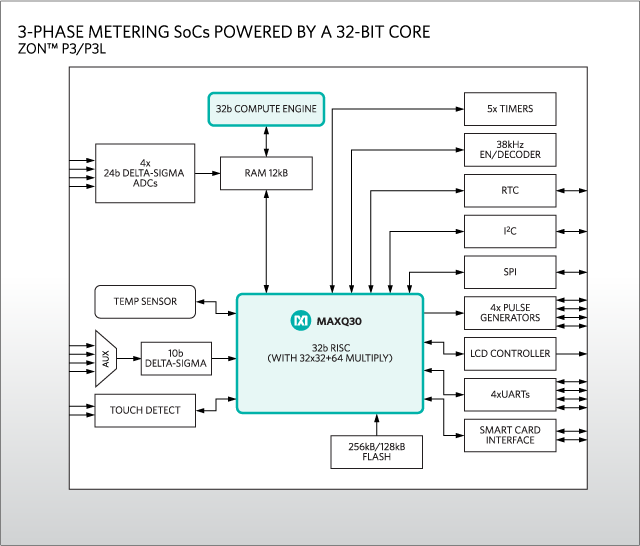

MAX71335L - 典型电路框图：
MAX71335L典型电路框图
Maxim美信半导体芯片：
承诺原装正品
专营Maxim美信，真正优化您的供应链
Maxim产品 - MAX71335L介绍

MAX71335L - ZON P3/P3L Polyphase Electricity Meter SoC

MAX71335L是Maxim美信半导体公司的一款电能测量与计量SoC产品，MAX71335L是ZON P3/P3L Polyphase Electricity Meter SoC，本站介绍了MAX71335L的封装应用图解、特点和优点、功能等，并给出了与MAX71335L相关的Maxim元器件型号供参考。

MAX71335L - ZON P3/P3L Polyphase Electricity Meter SoC - 电能测量与计量SoC - Best-in-Class Metrology Performance and Custom Peripherals - 美信半导体

产品概述

The ZON™ P3L/P3 (MAX71334L/MAX71335L) meteringSoC (systems on chip) integrates dual 32-bit processorsfor polyphase metering applications. It contains 256KBflash (ZON P3) or 128KB flash (ZON P3L), 12KB RAMand a single-cycle 32 x 32 + 64 multiplier. The applicationprocessor (CPU) is a 32-bit MAXQ®30 core. The metrologyprocessor is a proprietary compute engine (CE), a32-bit RISC processor dedicated to computing the meteringparameters from voltage and current samples.

关键特性
  • 以下关键特性由Maxim美信半导体提供：
  • Dual-Core Architecture for Improved System Performance and Flexibility
  • Dedicated 32-Bit DSP Compute Engine for Metrology Processing
  • MAXQ30 32-Bit RISC MPU Core, Up to 10 MIPS (at 10MHz), with 256kB Flash or 128kB Flash, and12kB data RAM
  • Advanced AFE with High Accuracy and Temperature Stability
  • Four Independent ADCs Measuring Four Current Channels and Three Voltage Channels
  • 0.1% Wh Accuracy over 2000:1 Current Range
  • Digital Temperature Compensation for Metrology and RTC
  • 40Hz–70Hz Line Frequency Range, Phase Compensation(±10°)
  • Low-Power 5ksps Auxiliary ADC for Environmental Monitoring
  • On-Chip Digital Temperature Sensor
  • Highly Integrated Product Features and Flexible Peripherals Support Broad Application Needs
  • LCD Controller Supporting Up to Eight Common Planes
  • Two PWM Control Channels with Programmable Frequency, Duty Cycle, Ramp Time
  • Two Touch Switch Inputs
  • Oscillator Based on 32kHz Watch Crystal with Internal 24MHz Backup R/C Oscillator
  • SPI (Master and Slave), Master I2C
  • Four UARTs (Configurable Pins), Smart Card Interface, 38kHz IR Decoder
  • 100-Pin LQFP
    • 热门应用
  • null
  • null
  • 智能表
