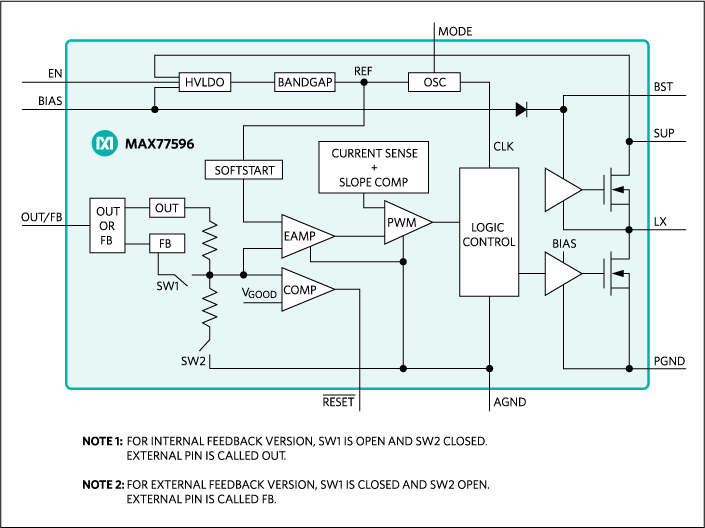

MAX77596 - 典型电路框图：
MAX77596典型电路框图
Maxim美信半导体芯片：
承诺原装正品
专营Maxim美信，真正优化您的供应链
Maxim产品 - MAX77596介绍

MAX77596 - 24V, 300mA, Buck Converter with 1.1μA IQ

MAX77596是Maxim美信半导体公司的一款DC-DC开关调节器产品，MAX77596是24V, 300mA, Buck Converter with 1.1μA IQ，本站介绍了MAX77596的封装应用图解、特点和优点、功能等，并给出了与MAX77596相关的Maxim元器件型号供参考。

MAX77596 - 24V, 300mA, Buck Converter with 1.1μA IQ - DC-DC开关调节器 - Offers a Unique Combination of Wide VIN Range, Low IQ, High Duty Cycle, and Small Solution Size - 美信半导体

产品概述

The MAX77596 is a small, synchronous buck converterwith integrated switches. The device is designed todeliver up to 300mA with input voltages from 3.5V to24V, while using only 1.1μA quiescent current at no load(fixed-output version). Voltage quality can be monitoredby observing the active-low RESET signal. The device can operatenear dropout by running at 98% duty cycle, making it idealfor battery-powered applications.

The device offers a fixed 3.3V output version, as well asan adjustable version. The adjustable version allows theuser to program the output voltage between 1V and 10Vby using a resistor-divider. Frequency is fixed at 1.7MHz,which allows for small external components and reducedoutput ripple. The device offers both forced-PWM andskip modes of operation, with ultra-low quiescent currentof 1.1μA in skip mode.

The MAX77596 is available in a small (2mm x 2.5mm)10-pin TDFN package and operates across the -40°C to+85°C temperature range.

关键特性
  • 以下关键特性由Maxim美信半导体提供：
  • Flexible Power for Systems That Require a WideInput Voltage Range
  • VIN Range: 3.5V to 24V
  • Up to 300mA Output Current
  • Fixed 3.3V or Programmable 1V to 10V OutputVoltage
  • 98% (Max) Duty Cycle Operation with LowDropout
  • Operates from 5V, 12V, or 20V USB Type-C InputPower
  • Operates from 2S, 3S, or 4S Li-Ion Battery
  • Minimizes Power Consumption and Extends BatteryLife
  • 1.1μA Quiescent Current (3.3V Fixed OutputVoltage)
  • 86% Peak Efficiency at 12VIN, 3.3VOUT
  • Minimizes Solution Size
  • 1.7MHz Operating Frequency
  • Small 2.0mm x 2.5mm x 0.75mm 10-Pin TDFNPackage
  • Robust Solution
  • Short-Circuit, Thermal Protections
  • 6.6ms Internal Soft-Start Minimizes Inrush Current
  • Current-Mode Control Architecture
  • Up to 42V Input Voltage Tolerance
