MAX798 - 高精度、同步整流、降压型控制器，用于CPU电源

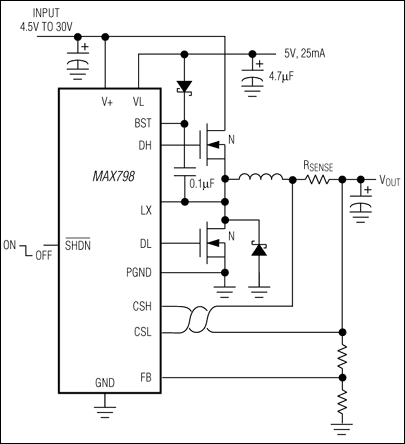

MAX798是Maxim美信半导体公司的一款DC-DC开关调节器产品，MAX798是高精度、同步整流、降压型控制器，用于CPU电源，本站介绍了MAX798的封装应用图解、特点和优点、功能等，并给出了与MAX798相关的Maxim元器件型号供参考。

MAX798 - 高精度、同步整流、降压型控制器，用于CPU电源 - DC-DC开关调节器 - 在较宽的负载范围内保持高效 - 美信半导体

产品概述

The MAX798 high-performance, step-down DC-DC converter provides main CPU power in battery-powered systems. This buck controller achieves 96% efficiency by using synchronous rectification and Maxim's proprietary Idle Mode™ control scheme to extend battery life at full-load (up to 10A) and no-load outputs. The MAX798's high accuracy meets the demanding requirements of the latest-generation CPUs. Excellent dynamic response corrects output transients caused by the latest dynamic-clock CPUs within five 300kHz clock cycles. Unique bootstrap circuitry drives inexpensive N-channel MOSFETs, reducing system cost and eliminating the crowbar switching currents found in some PMOS/NMOS switch designs.

The MAX798 has a logic-controlled and synchronizable fixed-frequency pulse-width-modulating (PWM) operating mode, which reduces noise and RF interference in sensitive mobile-communications and pen-entry applications. The SKIP override input allows automatic switchover to idle-mode operation (for high-efficiency pulse skipping) at light loads, or forces fixed-frequency mode for lowest noise at all loads.

关键特性

以下关键特性由Maxim美信半导体提供：

96% Efficiency

4.5V to 30V Input Range

1.6V to 6V Adjustable Precision Output

±0.4% Max Total Load-Regulation Error

0.06%/V Max Line-Regulation Error

5V Linear-Regulator Output

Precision 2.505V Reference Output

Automatic Bootstrap Circuit

150kHz/300kHz Fixed-Frequency PWM Operation

Programmable Soft-Start

1.2mA Typical Quiescent Current (VIN = 12V, VOUT = 2.5V)

1µA Typical Shutdown Current

热门应用

笔记本电脑和亚笔记本电脑

PDA与移动通信
