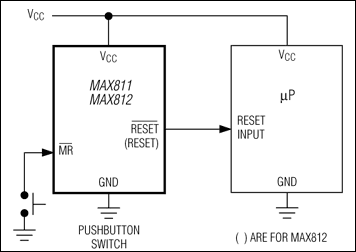

MAX812 - 典型电路框图：
MAX812典型电路框图
Maxim美信半导体芯片：
承诺原装正品
专营Maxim美信，真正优化您的供应链
Maxim产品 - MAX812介绍

MAX812 - 4引脚微处理器电压监测器，带有手动复位输入

MAX812是Maxim美信半导体公司的一款监控电路、电压监测、排序产品，MAX812是4引脚微处理器电压监测器，带有手动复位输入，本站介绍了MAX812的封装应用图解、特点和优点、功能等，并给出了与MAX812相关的Maxim元器件型号供参考。

MAX812 - 4引脚微处理器电压监测器，带有手动复位输入 - 监控电路、电压监测、排序 - 4引脚SOT复位IC，带有手动复位 - 美信半导体

产品概述

The MAX811/MAX812 are low-power microprocessor (µP) supervisory circuits used to monitor power supplies in µP and digital systems. They provide excellent circuit reliability and low cost by eliminating external components and adjustments when used with 5V-powered or 3V-powered circuits. The MAX811/MAX812 also provide a debounced manual reset input.

These devices perform a single function: They assert a reset signal whenever the VCC supply voltage falls below a preset threshold, keeping it asserted for at least 140ms after VCC has risen above the reset threshold. The only difference between the two devices is that the MAX811 has an active-low RESET output (which is guaranteed to be in the correct state for VCC down to 1V), while the MAX812 has an active-high RESET output. The reset comparator is designed to ignore fast transients on VCC. Reset thresholds are available for operation with a variety of supply voltages.

Low supply current makes the MAX811/MAX812 ideal for use in portable equipment. The devices come in a 4-pin SOT143 package.

关键特性
  • 以下关键特性由Maxim美信半导体提供：
  • Integrated Voltage Monitor Increases System Robustness with Added Manual Reset
  • Precision Monitoring of 3V, 3.3V, and 5V Power-Supply Voltages
  • 140ms Min Power-On-Reset Pulse Width
  • - Active-Low RESET Output (MAX811), RESET Output (MAX812)
  • Guaranteed Over Temperature
  • Guaranteed Active-Low RESET Valid to VCC = 1V (MAX811)
  • Power-Supply Transient Immunity
  • Saves Board Space
  • No External Components
  • 4-Pin SOT143 Package
  • Low Power Consumption Simplifies Power-Supply Requirements
  • 6µA Supply Current
    • 热门应用
  • 计算机：台式机、工作站和服务器
  • 控制器
  • 精确的µP与µC电源监控
  • 智能仪表
  • 便携式电池供电设备
