MAX8869 - 1A、MicroCap、低压差、线性稳压器

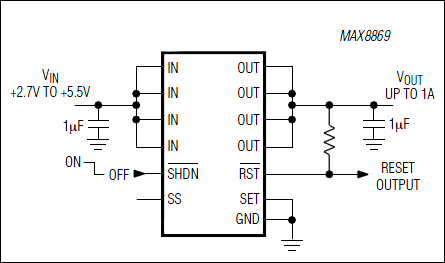

MAX8869是Maxim美信半导体公司的一款线性调节器产品，MAX8869是1A、MicroCap、低压差、线性稳压器，本站介绍了MAX8869的封装应用图解、特点和优点、功能等，并给出了与MAX8869相关的Maxim元器件型号供参考。

MAX8869 - 1A、MicroCap、低压差、线性稳压器 - 线性调节器 - 紧凑的1A、低压差线性稳压器，仅需要1µF输出电容! - 美信半导体

产品概述

The MAX8869 low-dropout linear regulator operates from a +2.7V to +5.5V input and delivers a guaranteed 1A load current with a low 200mV dropout. The high-accuracy (±1%) output voltage is preset at +5V, +3.3V, +2.5V, +1.8V, or +1.0V or is adjustable from +0.8V to +5V with an external resistor-divider.

The MAX8869 uses Microcap® technology and requires only a small 1µF output capacitor for guaranteed stability. An internal PMOS pass transistor allows low 500µA supply current, making this regulator useful for networking and telecom hardware as well as battery-operated equipment. Other features include soft-start, low-power shutdown, short-circuit protection, and thermal shutdown protection.

The MAX8869 is available in a 1.5W, 16-pin TSSOP package, which is 30% smaller than a SOT223 and only 1.1mm high.

关键特性

以下关键特性由Maxim美信半导体提供：

Guaranteed 1A Output Current

Stable with COUT = 1µF

Low 200mV Dropout at 1A

±1% Output Voltage Accuracy

Preset at +5V, +3.3V, +2.5V, +1.8V, or +1.0V and Adjustable from +0.8V to +5.0V

54dB PSRR at 100kHz

Adjustable Soft-Start

3ms Reset Output

Foldback Output Current Limit

Thermal Overload Protection

High-Power 16-Pin TSSOP Package (1.5W)

30% Smaller than SOT223 (Only 1.1mm High)

热门应用

移动电话基站

网络设备

笔记本电脑

个人计算机

电信硬件
