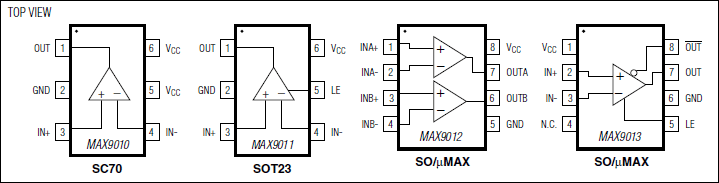

MAX9010 - 典型电路框图:
MAX9010典型电路框图
承诺原装正品
专营Maxim美信,真正优化您的供应链
Maxim产品 - MAX9010介绍
MAX9010 - SC70封装、5ns、低功耗、单电源、高精度TTL比较器

MAX9010是Maxim美信半导体公司的一款放大器产品,MAX9010是SC70封装、5ns、低功耗、单电源、高精度TTL比较器,本站介绍了MAX9010的封装应用图解、特点和优点、功能等,并给出了与MAX9010相关的Maxim元器件型号供参考。

MAX9010 - SC70封装、5ns、低功耗、单电源、高精度TTL比较器 - 放大器 - 5ns、低功耗、单电源供电、精密的TTL比较器,SC70和SOT23封装 - 美信半导体

产品概述

The MAX9010/MAX9011/MAX9013 single and MAX9012 dual, high-speed comparators operate from a single 4.5V to 5.5V power supply and feature low-current consumption. They have precision differential inputs and TTL outputs. They feature short propagation delay (5ns, typ), low-supply current, and a wide common-mode input range that includes ground. They are ideal for low-power, high-speed, single-supply applications.

The comparator outputs remain stable through the linear region when driven with slow-moving or low input-overdrive signals, eliminating the output instability common to other high-speed comparators. The input voltage range extends to 200mV below ground with no output phase reversal. The MAX9013 features complementary outputs and both the MAX9011/MAX9013 have a latch enable input (LE). The MAX9013 is an improved plug-in replacement for the industry-standard MAX913 and LT1016/LT1116, offering lower power and higher speed when used in a single 5V supply application.

For space-critical designs, the single MAX9010 is available in the tiny 6-pin SC70 package. The single MAX9011 is available in a space-saving 6-pin SOT23 package. The dual MAX9012 and the single MAX9013 are available in 8-pin µMAX® and 8-pin SO packages. All products in the family are guaranteed over the extended temperature range of -40°C to +85°C.

关键特性
  • 以下关键特性由Maxim美信半导体提供:
  • Ultra-Fast, 5ns Propagation Delay
  • Low Quiescent Current:
  • 900µA (MAX9010/MAX9011)
  • 1.3mA (MAX9013)
  • 2.4mA (MAX9012)
  • Single-Supply 4.5V to 5.5V Applications
  • Input Range Extends Below Ground
  • No Minimum Input Signal Slew-Rate Requirement
  • No Supply-Current Spikes During Switching
  • Stable when Driven with Slow-Moving Inputs
  • No Output Phase Reversal for Overdriven Inputs
  • TTL-Compatible Outputs (Complementary for MAX9013)
  • Latch Function Included (MAX9011/MAX9013)
  • High-Precision Comparators
  • 0.7mV Input Offset Voltage
  • 3.0V/mV Voltage Gain
  • Available in Tiny 6-Pin SC70 and SOT23 Packages
  • 热门应用
  • 电池供电应用
  • 高速脉冲幅度/宽度鉴别器
  • 高速线接收器
  • 高速采样电路
  • 高速信号整形
  • 高速触发
  • 开关型稳压器
  • 过零检测器
